Home >> Pontiac >> 2007 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Clutch Switch >> Diagrams

Clutch Switch: Diagrams

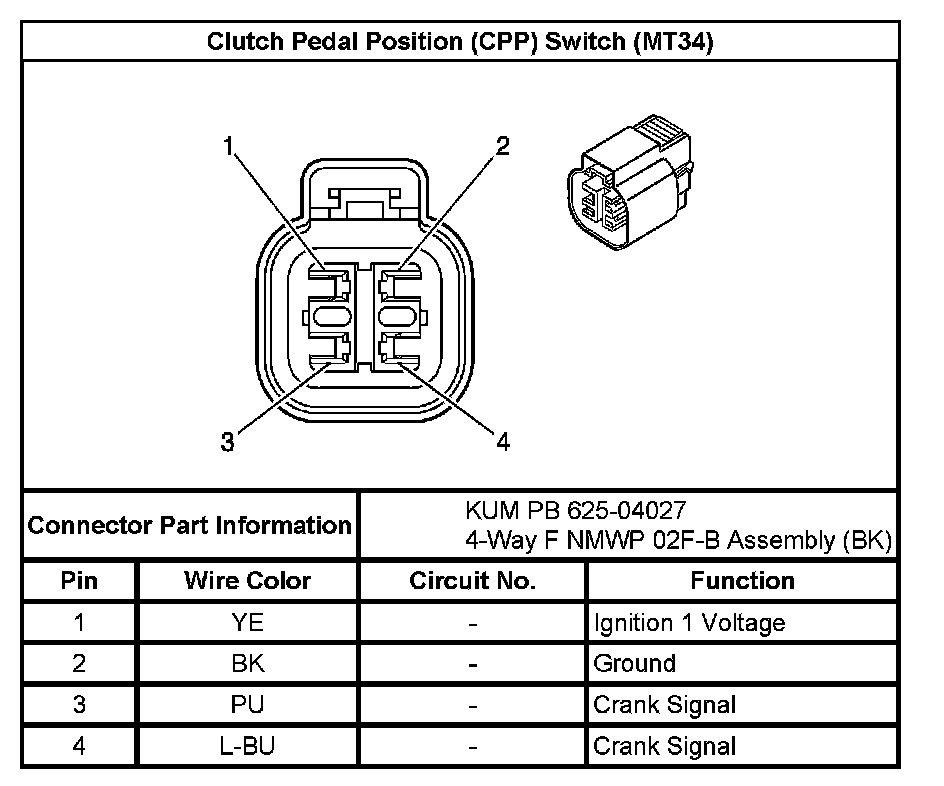

Engine Controls Connector End Views (Notchback)
