Instrument Panel Bulb: Service and Repair

Instrument Cluster Bulb Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the instrument cluster.

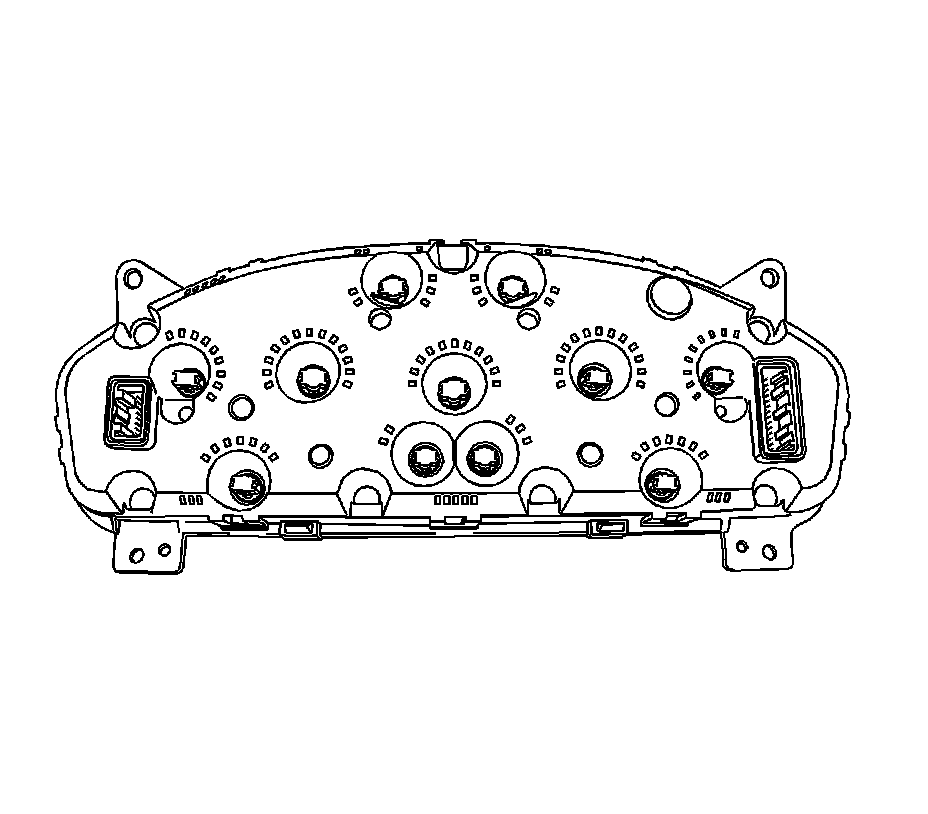

3. Remove the bulb from the rear of the cluster.

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the new bulb.
2. Install the instrument cluster.
3. Connect the negative battery cable.
