Recirculation Actuator Replacement

Recirculation Actuator Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the instrument panel assembly.

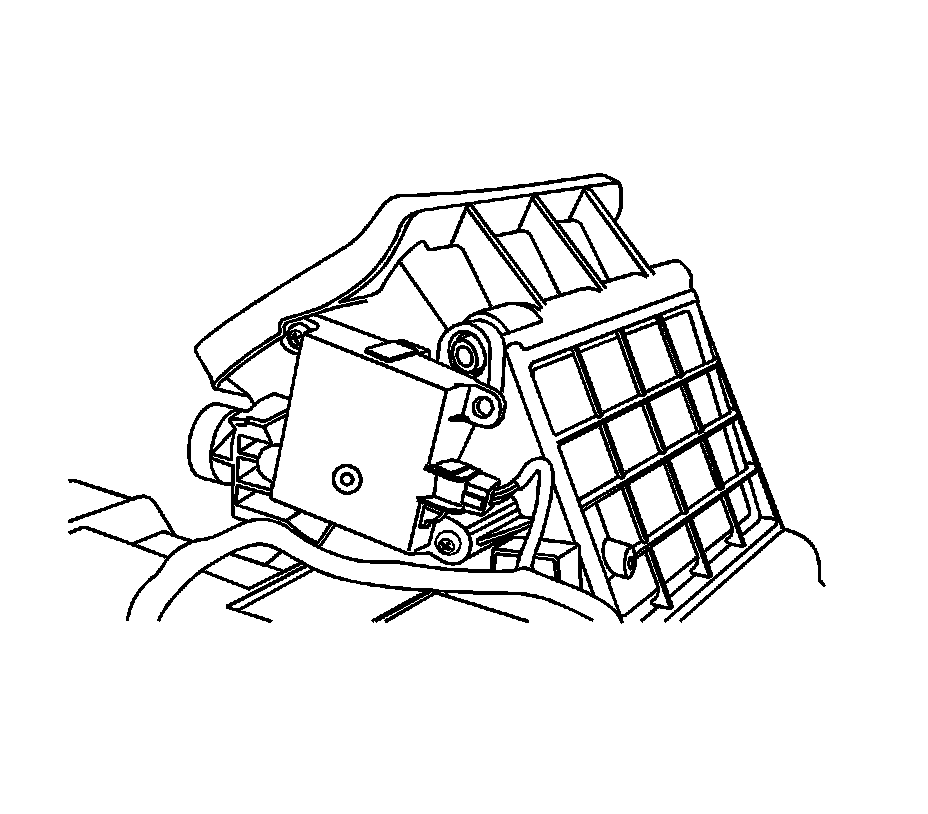

3. Disconnect the electrical connector.
4. Remove the motor retaining screws.
5. Remove the motor.

Installation Procedure




1. Install the motor.
2. Install the motor retaining bolts and tighten.
3. Connect the electrical connector.
4. Install the instrument panel assembly.
5. Connect the negative battery cable.
