Mode Actuator Replacement

Mode Actuator Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the instrument panel assembly.
3. Disconnect the electrical connector.

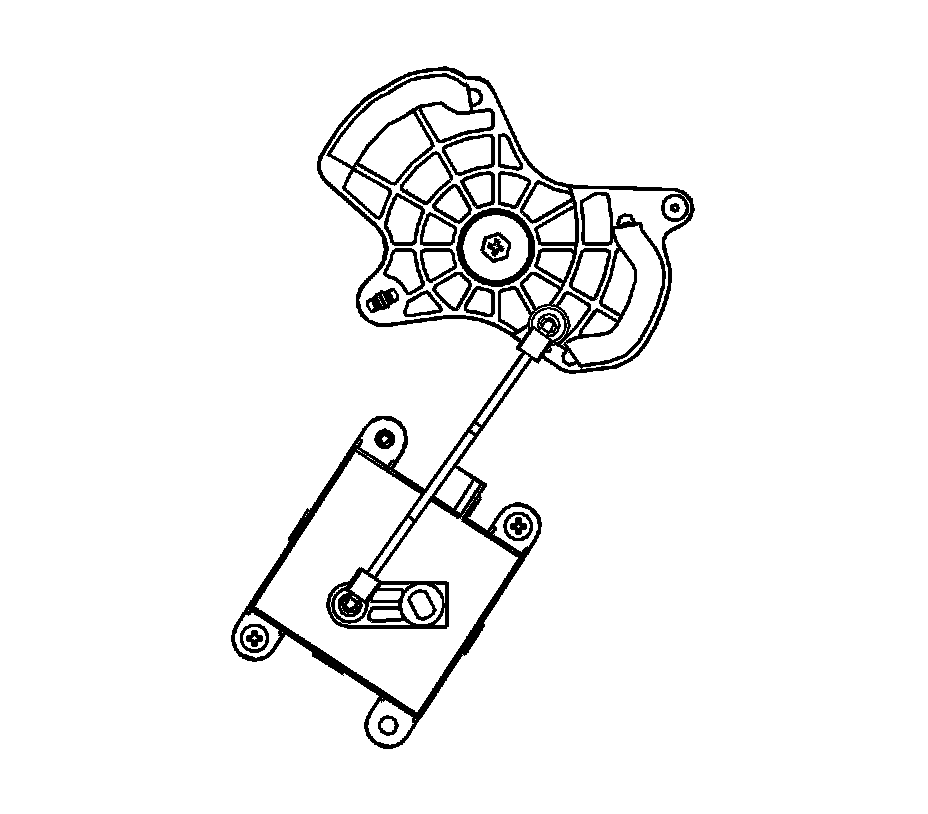

4. Remove the motor actuating rod by snapping out it out of the lever with needle-nose pliers.
5. Remove the motor retaining bolts.
6. Remove the mode door motor.

Installation Procedure




1. Install the mode door motor.
2. Install the motor retaining screws and tighten.
3. Install the actuating rod.
4. Connect the electrical connector.
5. Install the instrument panel assembly.
6. Connect the negative battery cable.
