Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2007
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper and Washer Systems
>>
Wiper Relay

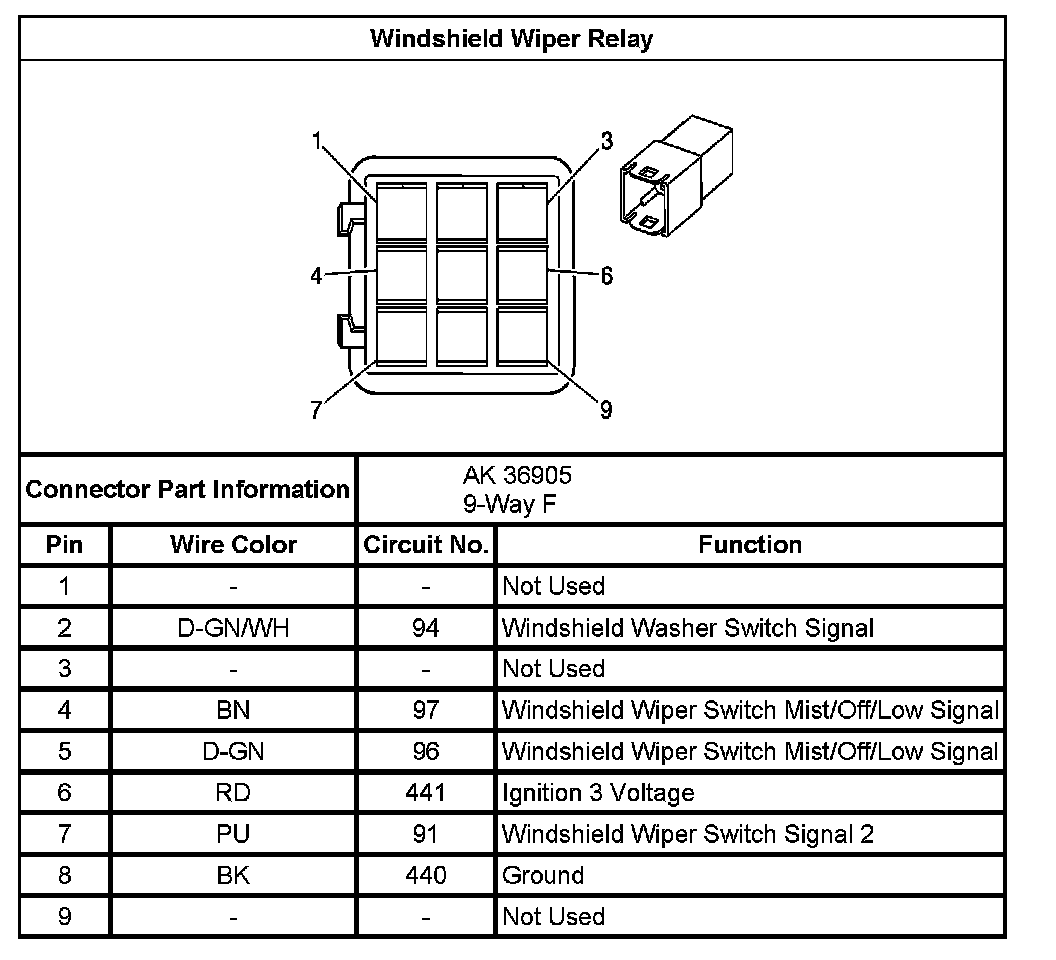

Wiper Relay
Wiper/Washer Connector End Views (Hatchback)
