Home
>>
Pontiac
>>
2007
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Auxiliary Power Outlet
>>

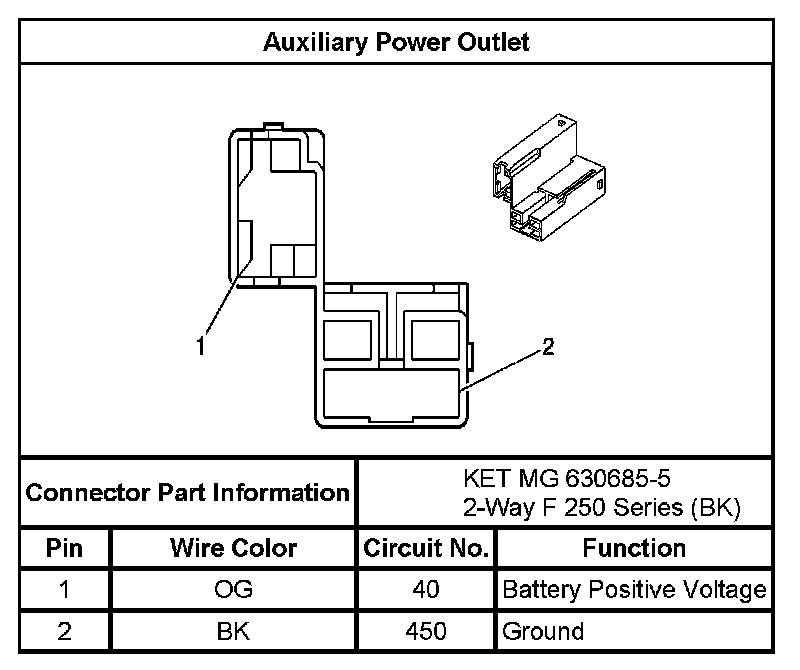

Power Outlet Connector End Views (Hatchback)
Power Outlet Connector End Views (Hatchback)
Power Outlet Connector End Views (Hatchback)
