Home
>>
Pontiac
>>
2007
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor
>>
Cooling System Connector End Views (Hatchback)
>>
Cooling Fan - Auxiliary
Cooling Fan - Auxiliary
Cooling Fan - Auxiliary

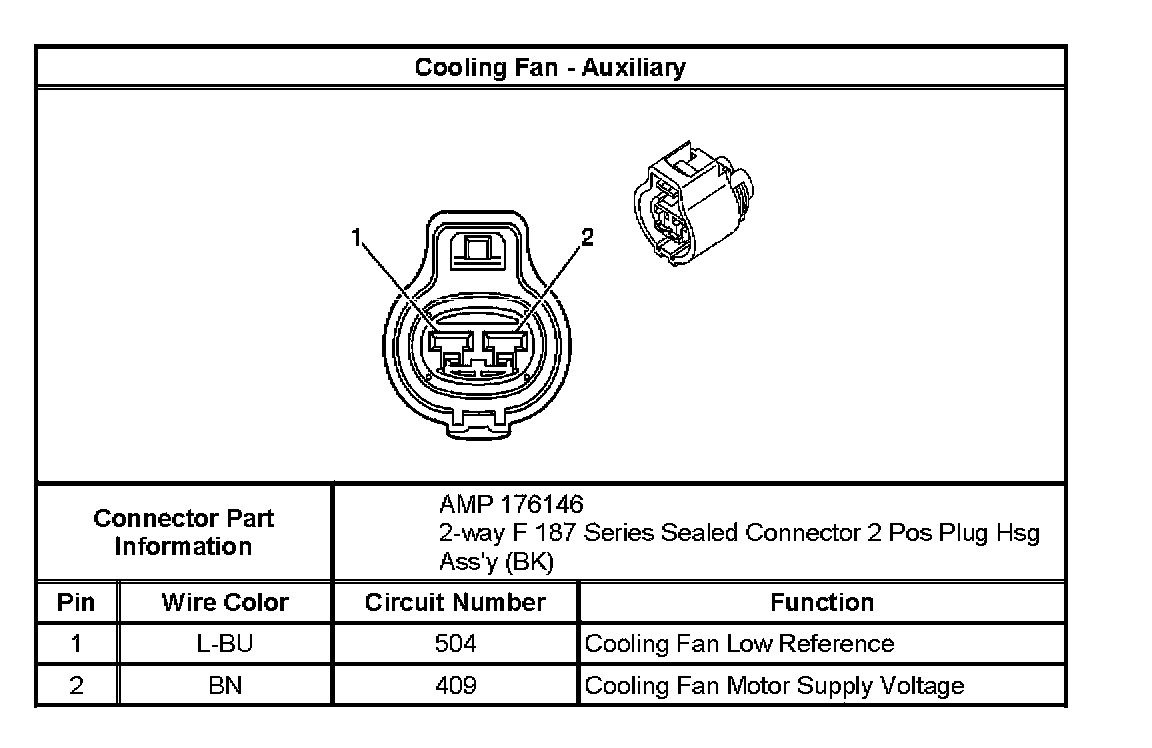

Cooling Fan - Auxiliary:
