Home
>>
Pontiac
>>
2007
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Daytime Running Lamp
>>
System Diagram
System Diagram

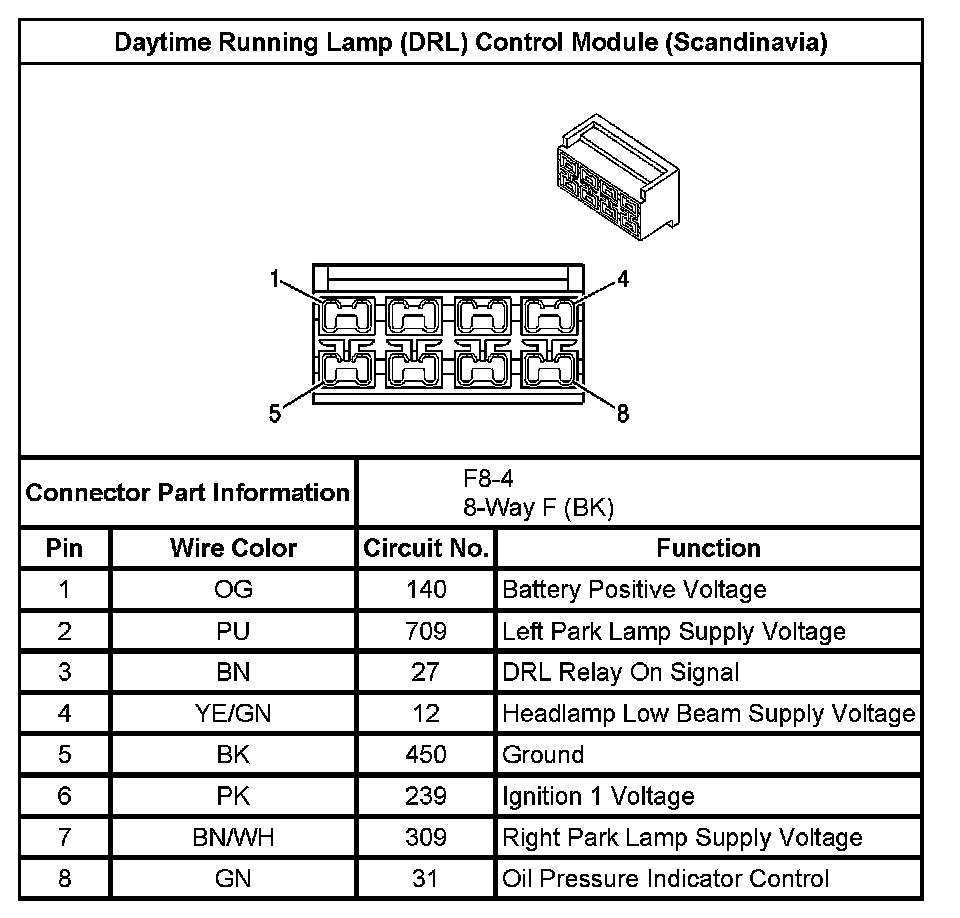

Lighting Systems Connector End Views (Hatchback)
