Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch
HVAC Connector End Views

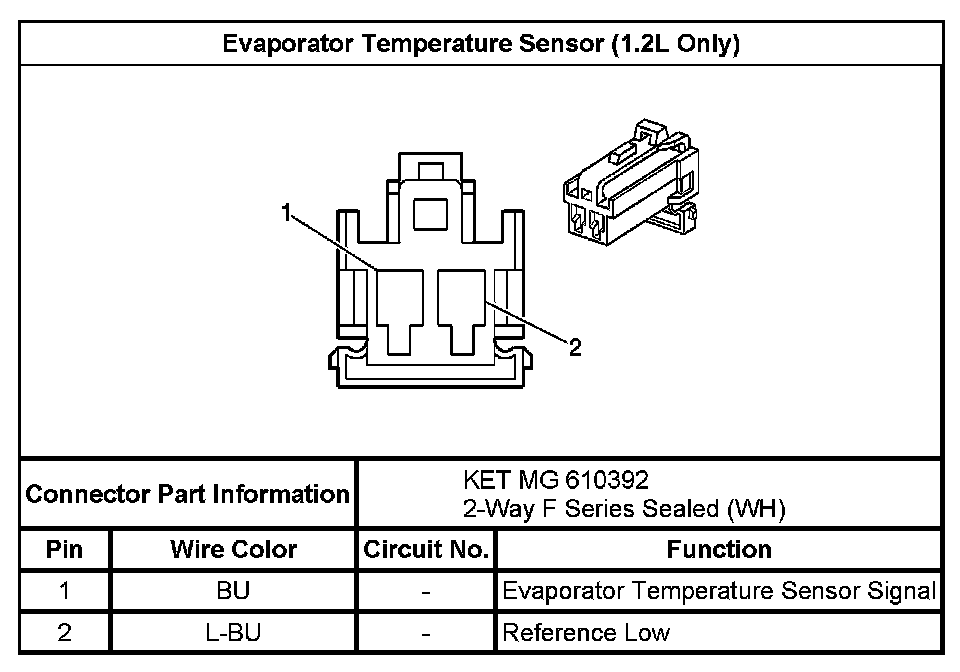

Evaporator Temperature Sensor (1.2L Only)
