Home
>>
Pontiac
>>
2007
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

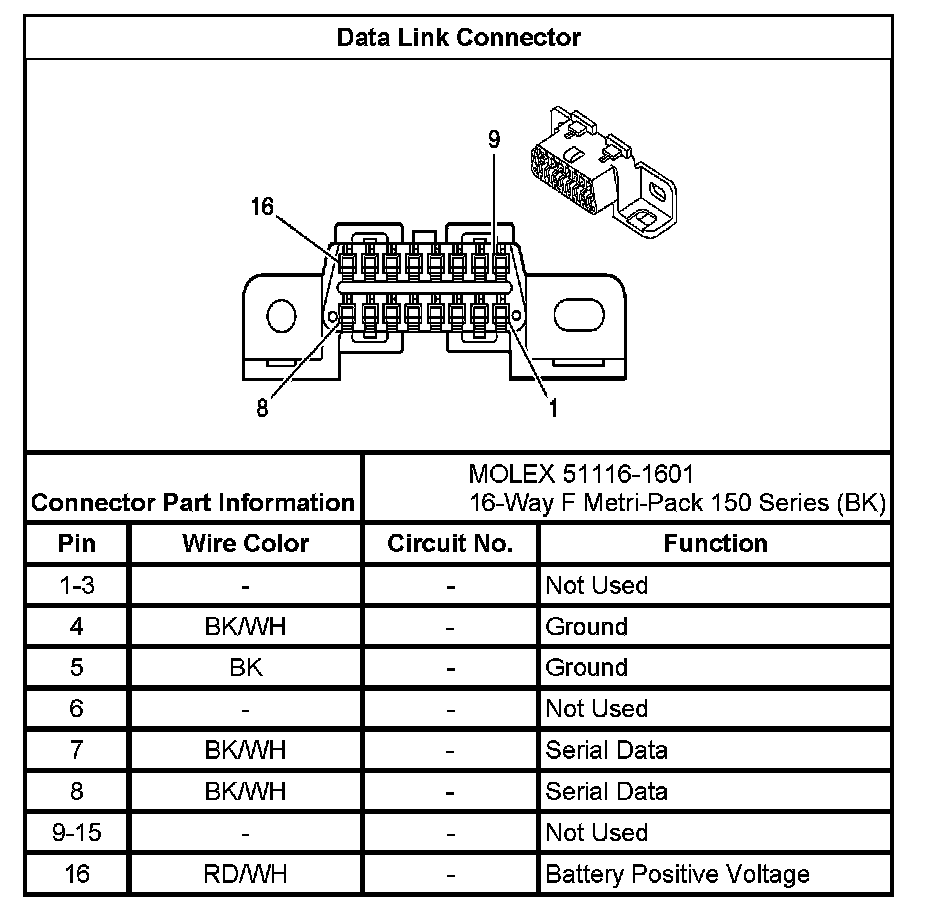

Data Link Connector
>>
Data Communication Connector End Views (Notchback)
Data Communication Connector End Views (Notchback)
Data Communication Connector End Views (Notchback)
