Pontiac
>>
2007
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C400 - C499
>>
C401
>>
Notchback
Notchback

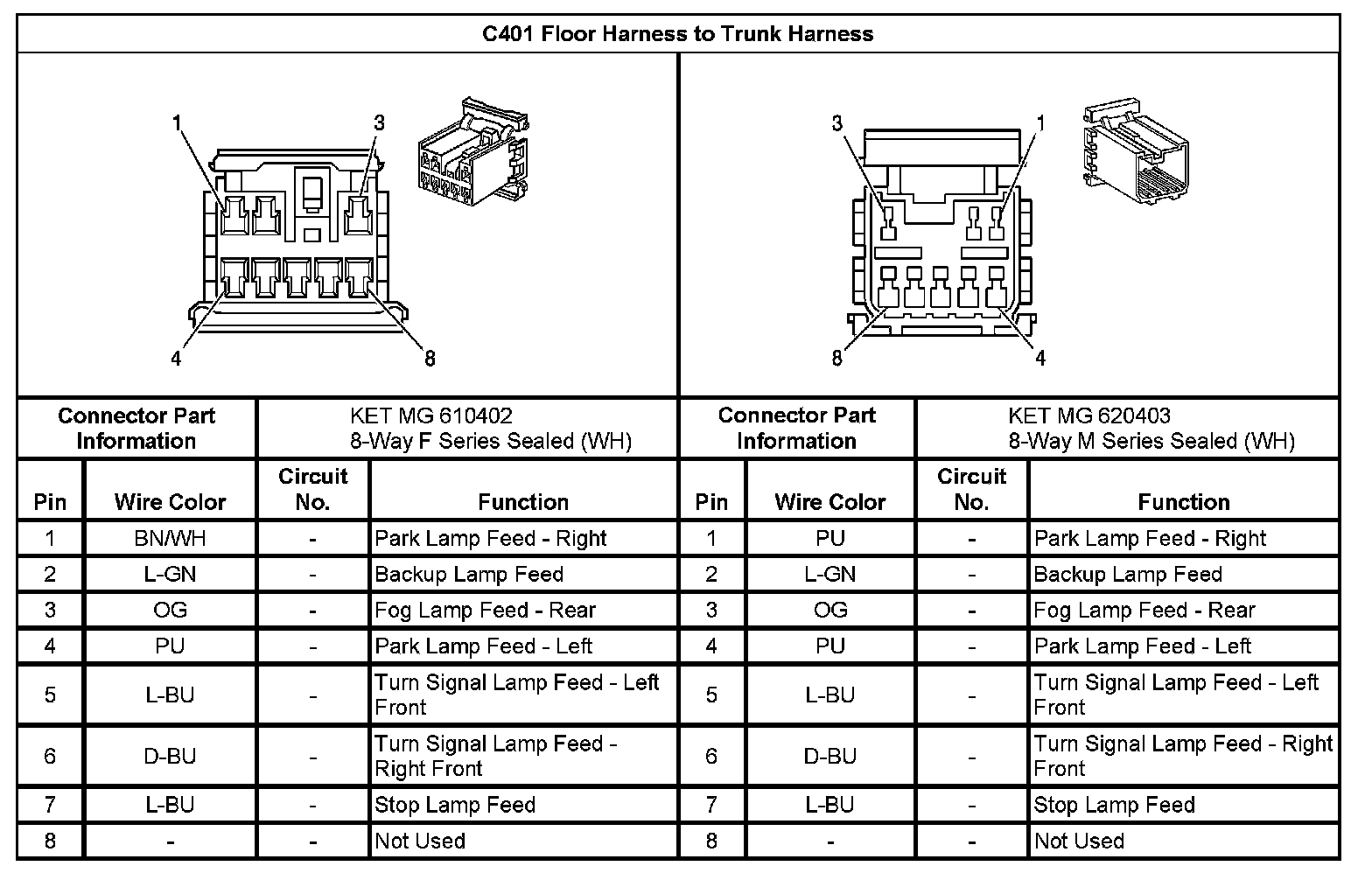

Inline Harness Connector End Views (Notchback)
