Pontiac
>>
2007
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C200 - C299
>>
C217
C217

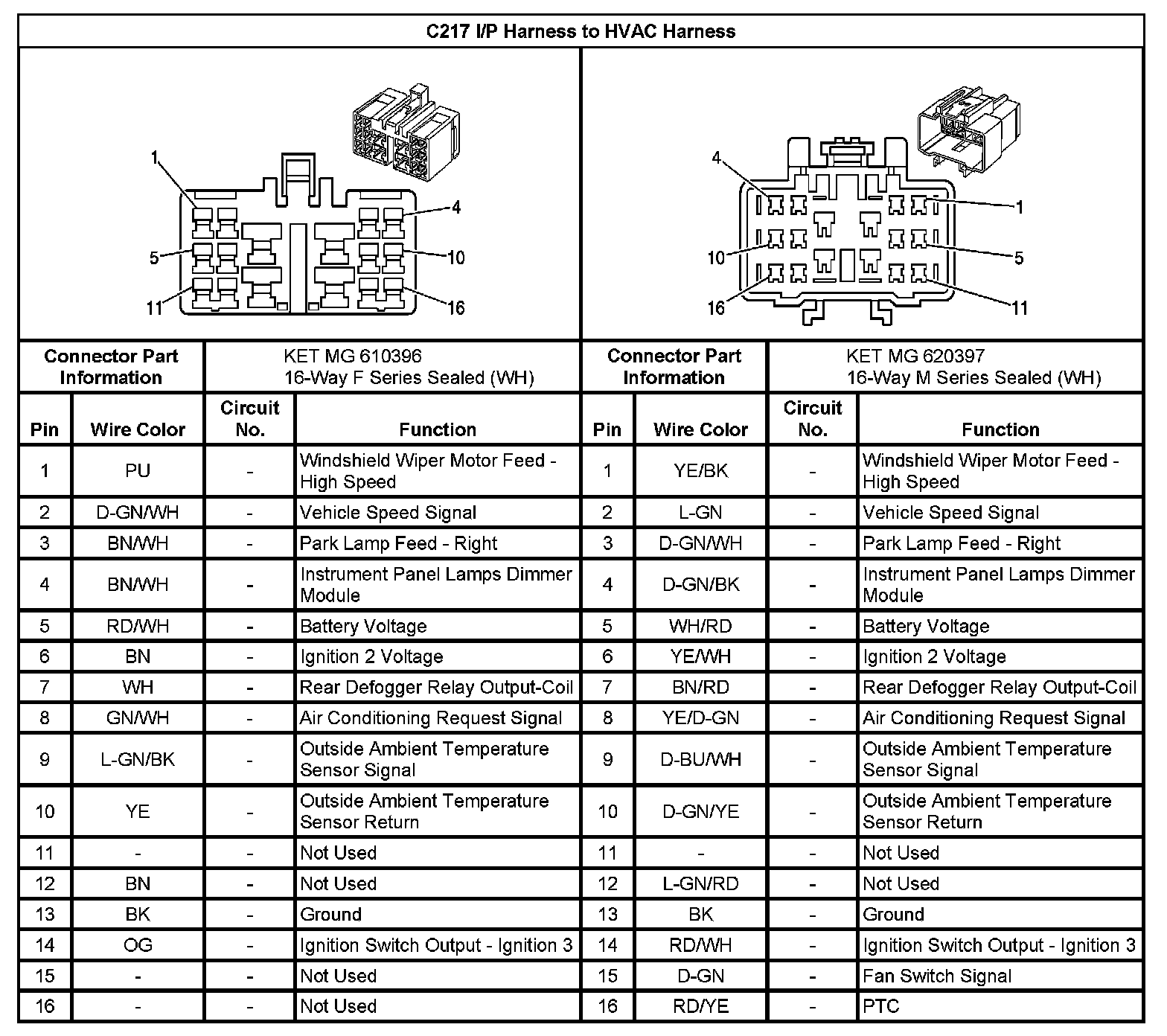

Inline Harness Connector End Views (Notchback)
