Rear Brake Hose Replacement

Rear Brake Hose Replacement

Removal Procedure





Notice: Refer to Vehicle Lifting.

1. Raise and support the vehicle.

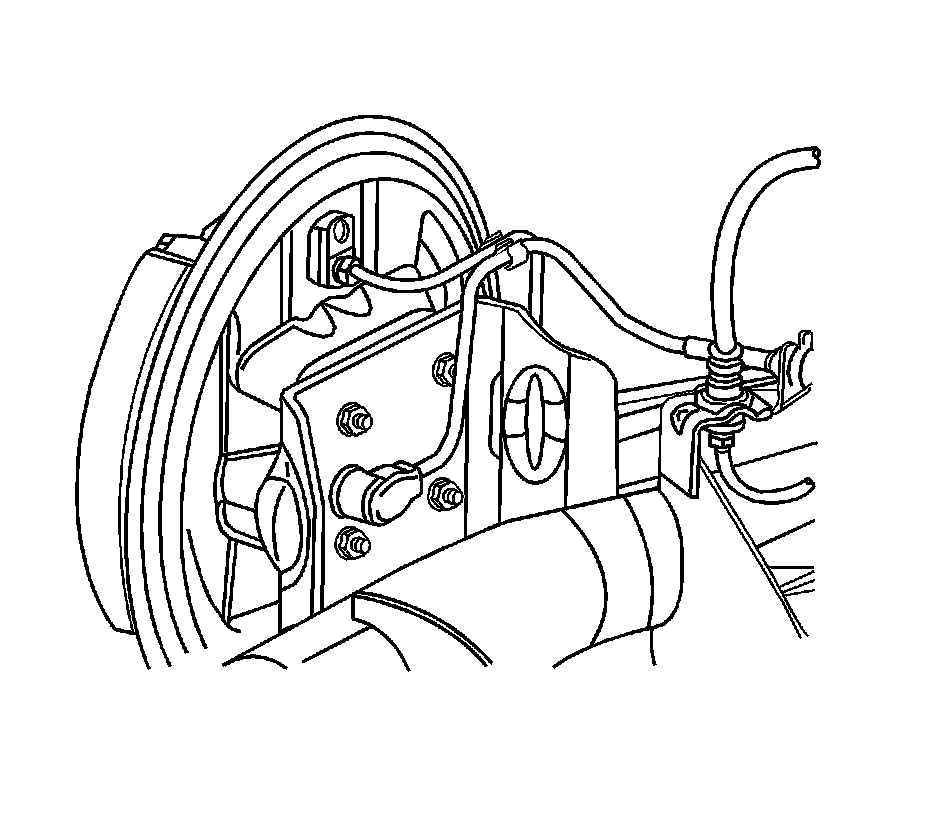

2. Disconnect the brake lines from the brake hoses at the body and the rear axle brackets.




3. Remove both brake hose E-ring retainers.
4. Remove the brake hoses from the brackets.

Installation Procedure

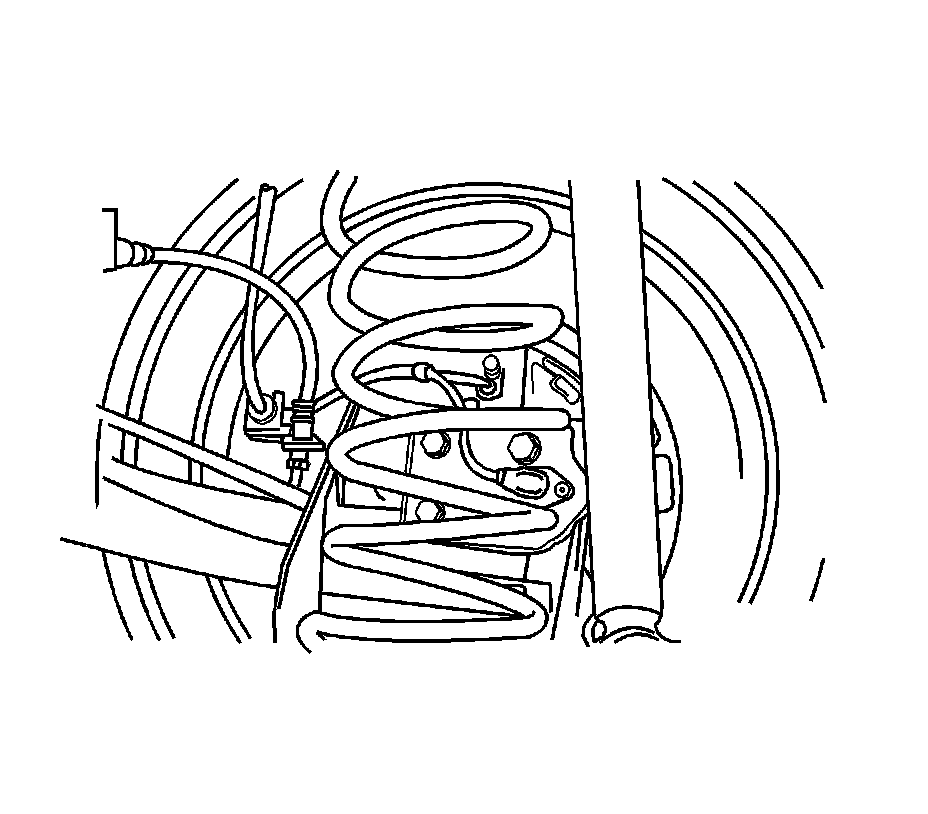

1. Install the brake hoses to the body and the rear axle brackets.

Notice: Refer to Fastener Notice.

2. Connect the brake lines to the brake hose.

Tighten the brake lines to 16 N.m (12 lb ft).




3. Install the brake hose retainers.
4. Lower the vehicle.
5. Bleed the brake system.
6. Check the brake system for leaks.
