Spoiler: Service and Repair

Rear Spoiler Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution .

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
2. Remove the clips and rear compartment trim.

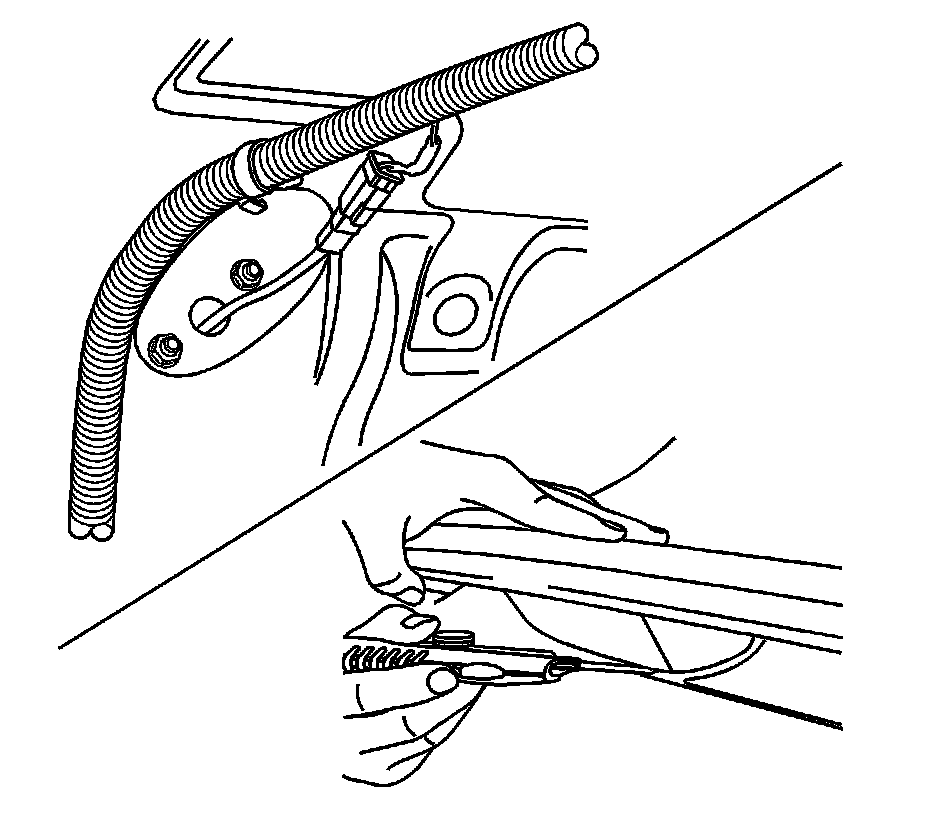

3. Disconnect the rear spoiler electrical connector.
4. Remove the nuts.
5. Using a flat-bladed tool, carefully separate the rear spoiler from the rear compartment lid.

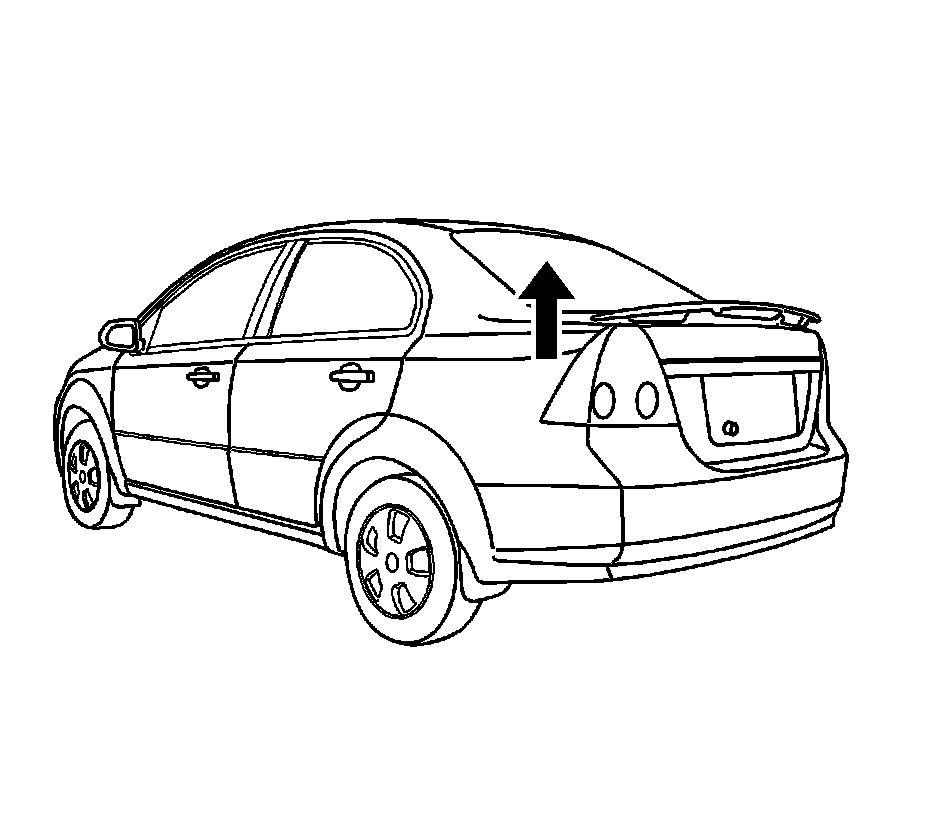

6. Remove the rear spoiler from the rear compartment lid.



Installation Proccedure






Important: If reusing the rear spoiler, remove any remaining double-sided tape from the rear spoiler and the rear compartment lid.

1. Apply new double-sided tape.
2. Peel off the adhesive backing paper and affix the rear spoiler on to the rear compartment lid, ensuring it is carefully positioned.





Notice: Refer to Fastener Notice .

3. Install the nuts attaching the rear spoiler.

Tighten the nuts to 3 N.m (27 lb in).

4. Install the rear compartment lid trim with the clips.
5. Connect the negative battery cable.
