Radio Rear Speaker Replacement

Radio Rear Speaker Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the rear window shelf trim panel.

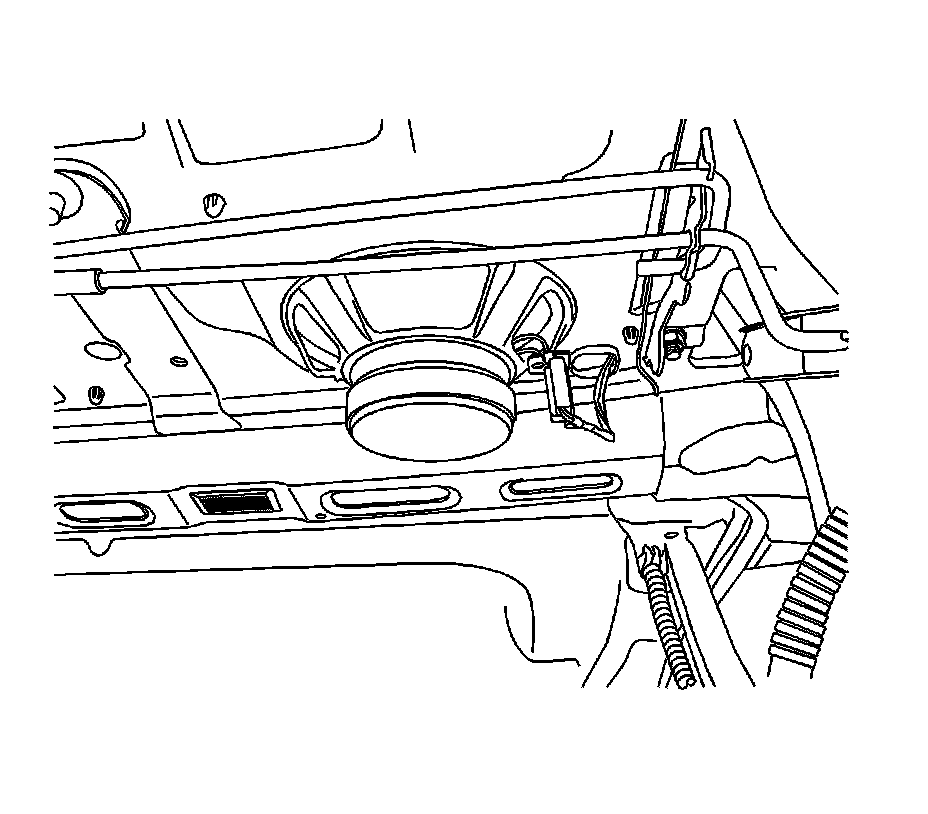

3. Disconnect the electrical connector.

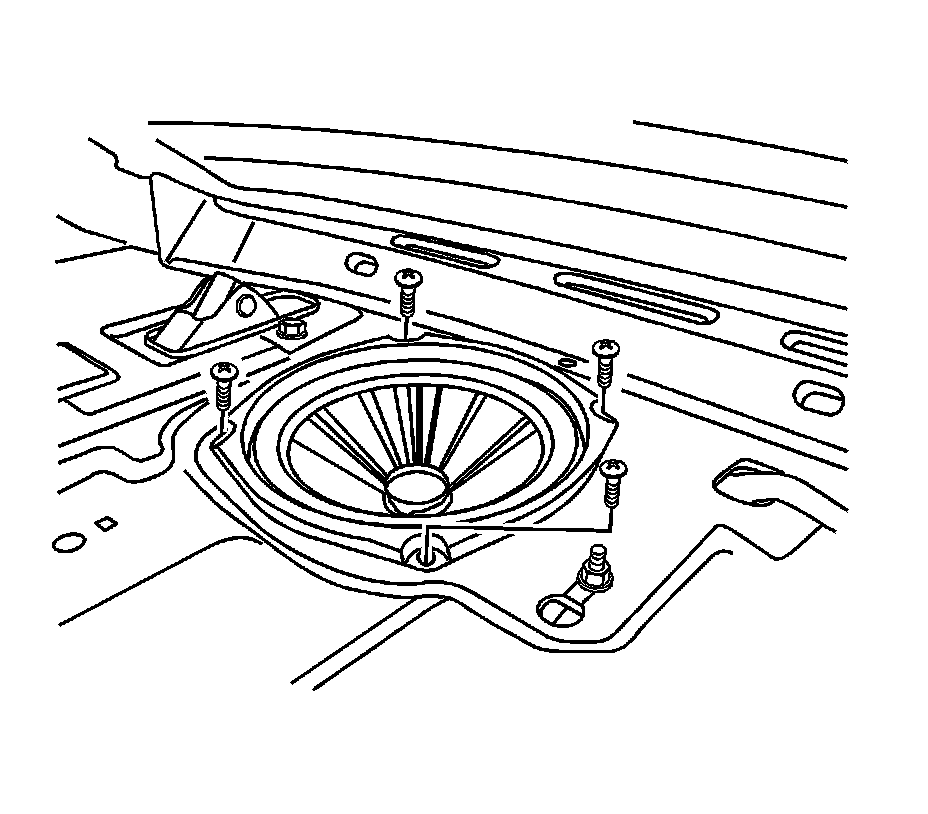

4. Remove the screws and the rear speakers.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the rear speakers with the screws.

Tighten the rear speaker screws to 3 N.m (27 lb in).




2. Connect the electrical connector.
3. Install the rear window shelf trim panel.
4. Connect the negative battery cable.
