Radio Front Speaker Replacement

Radio Front Speaker Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the front door trim panel.

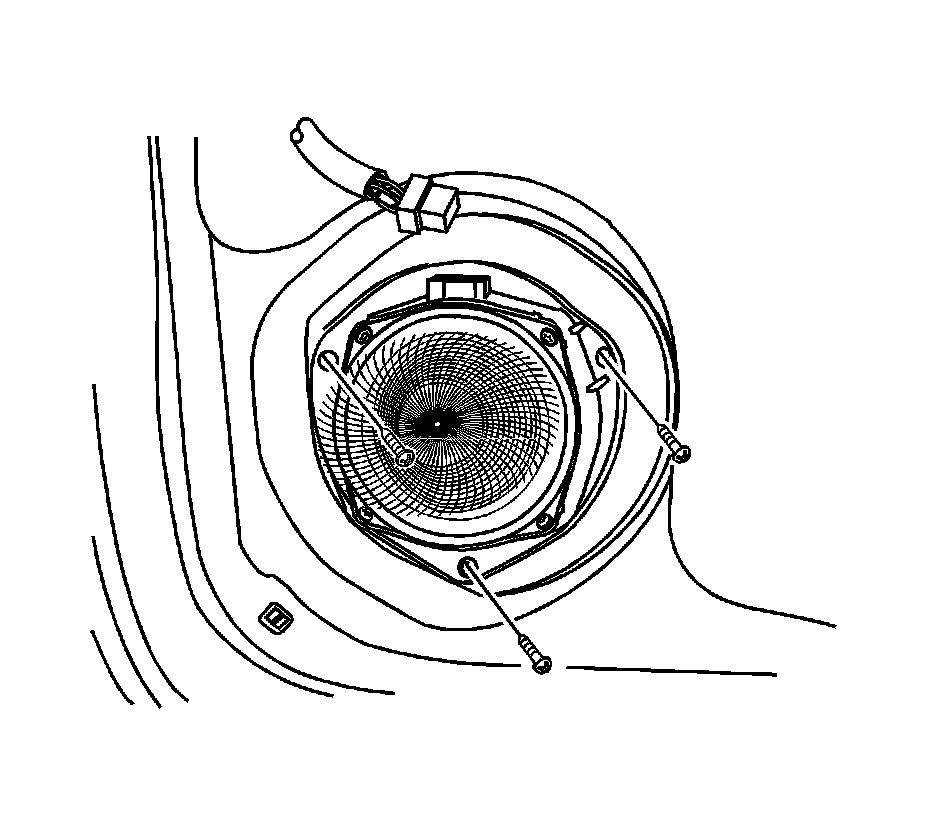

3. Remove the screws and the front speaker.
4. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.

Notice: Refer to Fastener Notice.

2. Install the front speaker with the screws.

Tighten the front speaker screws to 3.5 N.m (31 lb in).

3. Install the front door trim panel.
4. Connect the negative battery cable.
