Front Upper Speaker Replacement



Front Upper Speaker Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.

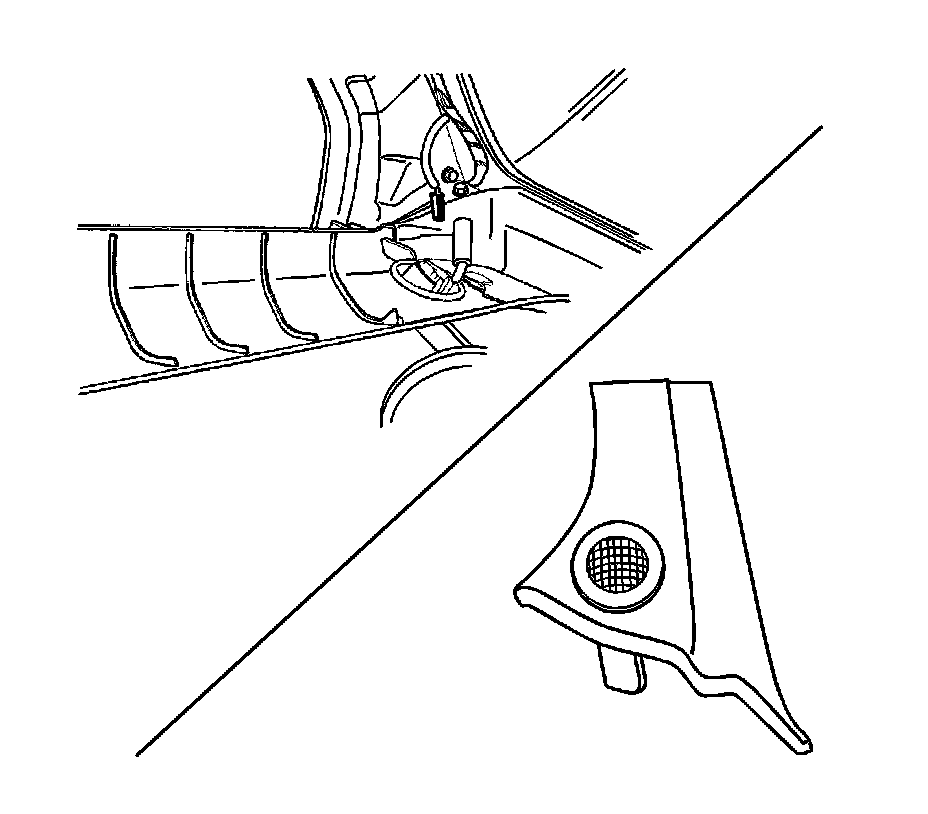

2. Pry off the windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement.
3. Disconnect the electrical connector.
4. Remove the tweeter.

Installation Procedure




1. Install the tweeter.
2. Connect the electrical connector.
3. Install the windshield pillar garnish molding.
4. Connect the negative battery cable.
