Pontiac
>>
2007
>>
Vibe L4-1.8L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Diagrams
>>
Connector Views
Connector Views

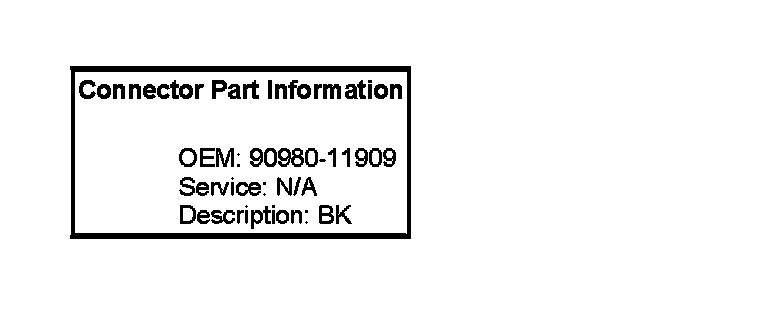

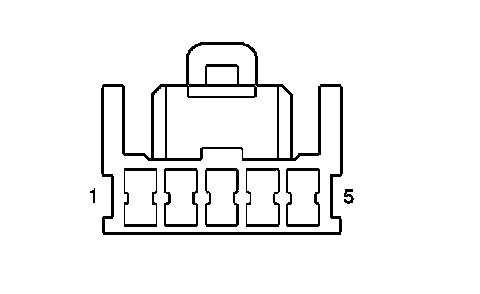

Shift Lock Control Connector End Views

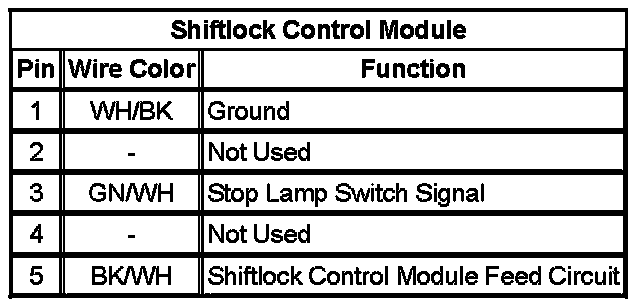

Shiftlock Control Module
Shiftlock Control Module:
