Power Steering Pump: Locations

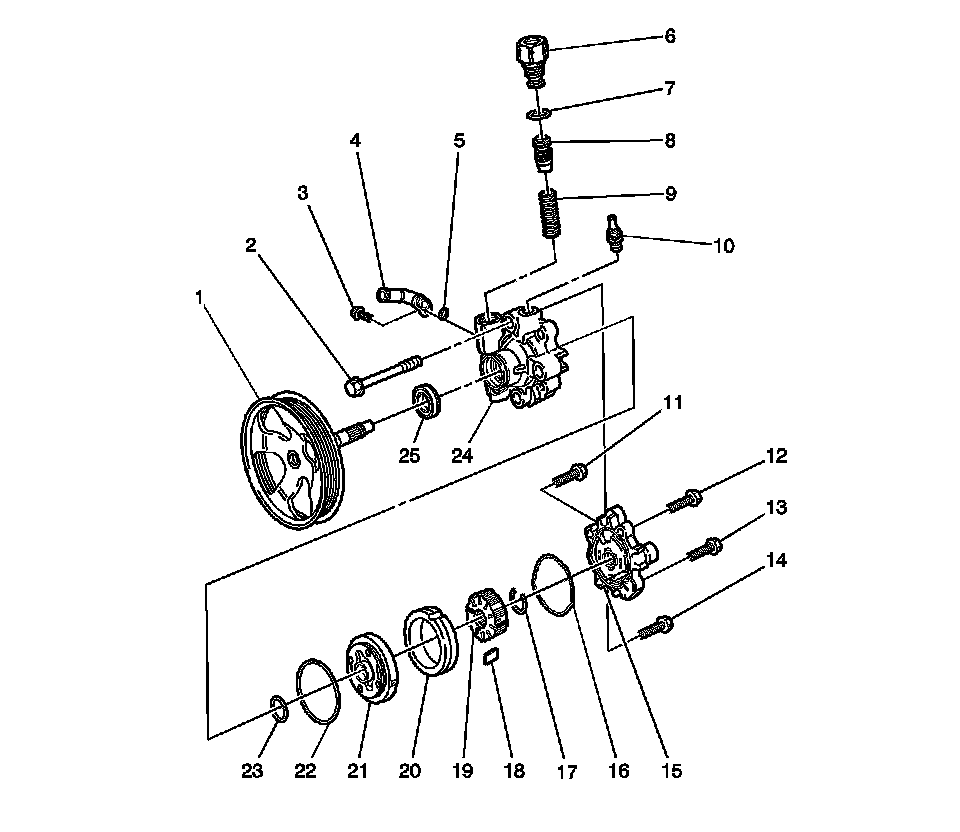

Power Steering Pump Disassembled View

Power Steering Pump Disassembled View:

1 - Power Steering Pump Pulley
2 - Power Steering Pump Rear Bracket Bolt
3 - Power Steering Pump Inlet Tube Bolt
4 - Power Steering Pump Inlet Tube
5 - Power Steering Pump Inlet Tube Seal
6 - Power Steering Pump Fitting
7 - Power Steering Pump Fitting Seal
8 - Power Steering Pump Flow Control Valve
9 - Power Steering Pump Flow Control Valve Spring
10 - Power Steering Pressure Switch
11 - Power Steering Pump Housing Bolt
12 - Power Steering Pump Housing Bolt
13 - Power Steering Pump Housing Bolt
14 - Power Steering Pump Housing Bolt
15 - Power Steering Pump Rear Housing
16 - Power Steering Pump Housing Seal
17 - Power Steering Pump Shaft Retainer Ring
18 - Power Steering Pump Vane
19 - Power Steering Pump Rotor
20 - Power Steering Pump Ring
21 - Power Steering Pump Plate
22 - Power Steering Pump Pressure Plate Seal
23 - Power Steering Pump Pressure Plate Seal
24 - Power Steering Pump Front Housing
25 - Power Steering Pump Shaft Seal
