Rear Seat Belt Buckle Replacement

Rear Seat Belt Buckle Replacement

Removal Procedure




1. Remove the rear seat.

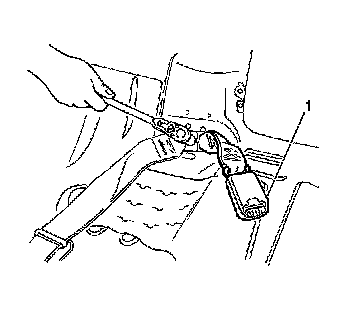

2. Remove the following components from the vehicle:

* The anchor bolt
* The rear seat belt buckle (1)

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the rear seat belt buckle (1) to the vehicle. Secure the buckle with the anchor bolt.

Tighten the rear seat belt buckle anchor bolt to 41 N.m (30 lb ft).

2. Install the rear seat.
