Home >> Pontiac >> 2007 >> Vibe L4-1.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Audible Warning Device Control Module >> Diagrams

Audible Warning Device Control Module: Diagrams

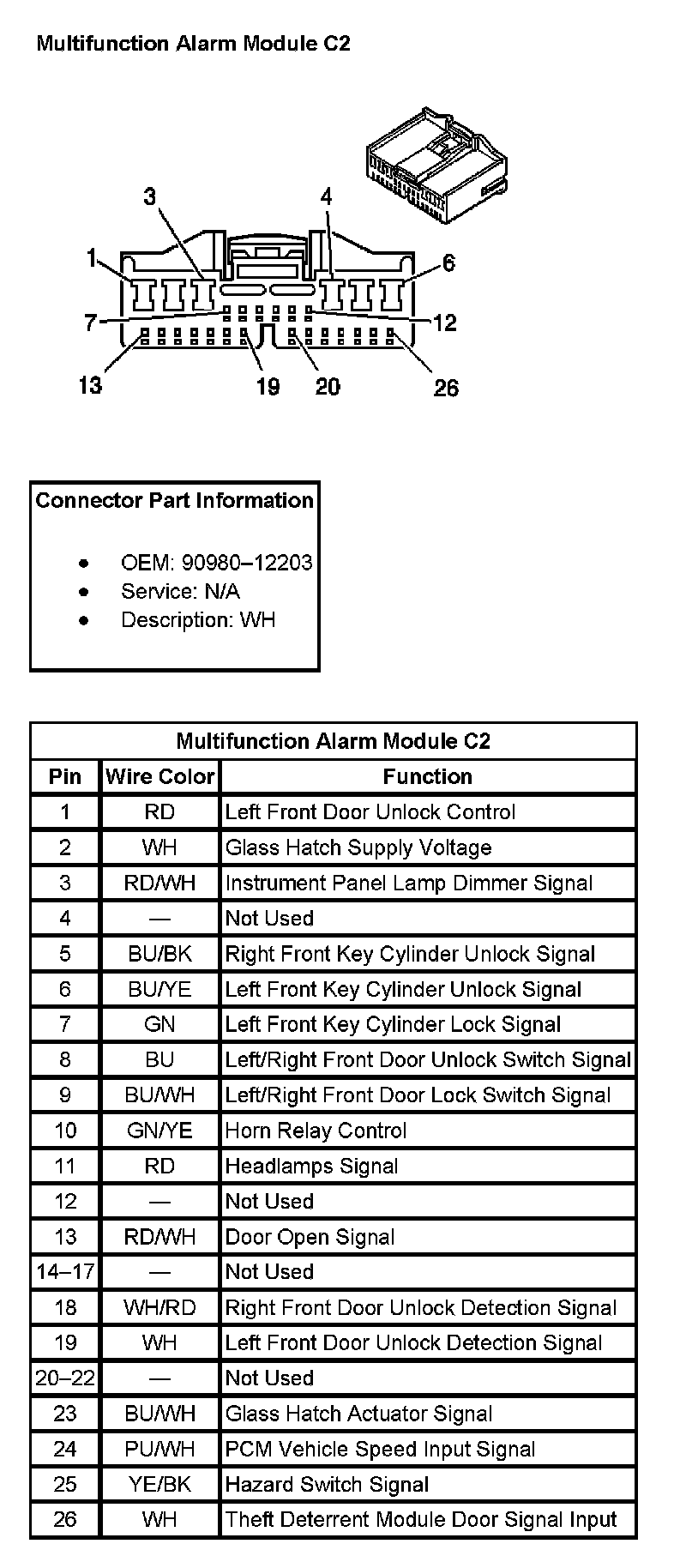

Multifunction Alarm Module C2:
