Vacuum and Vapor Hose Diagrams

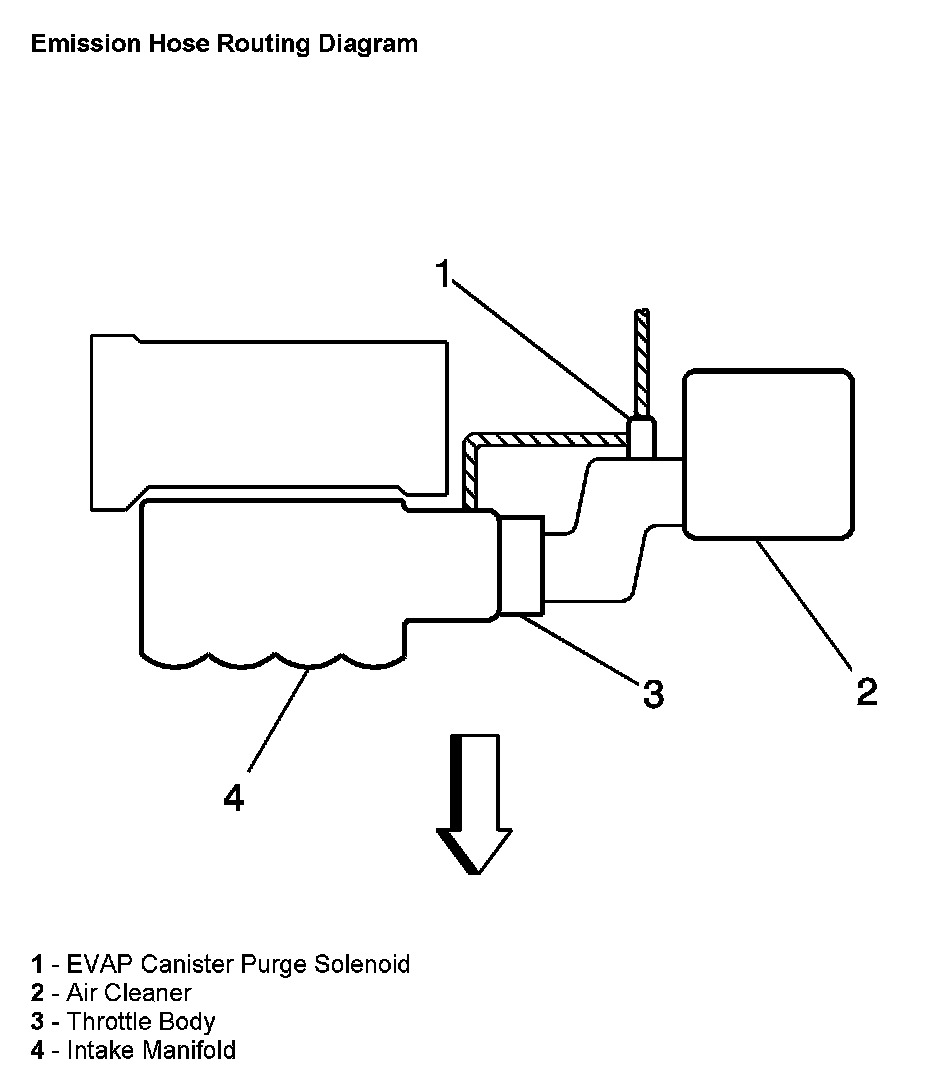

Emission Hose Routing Diagram:

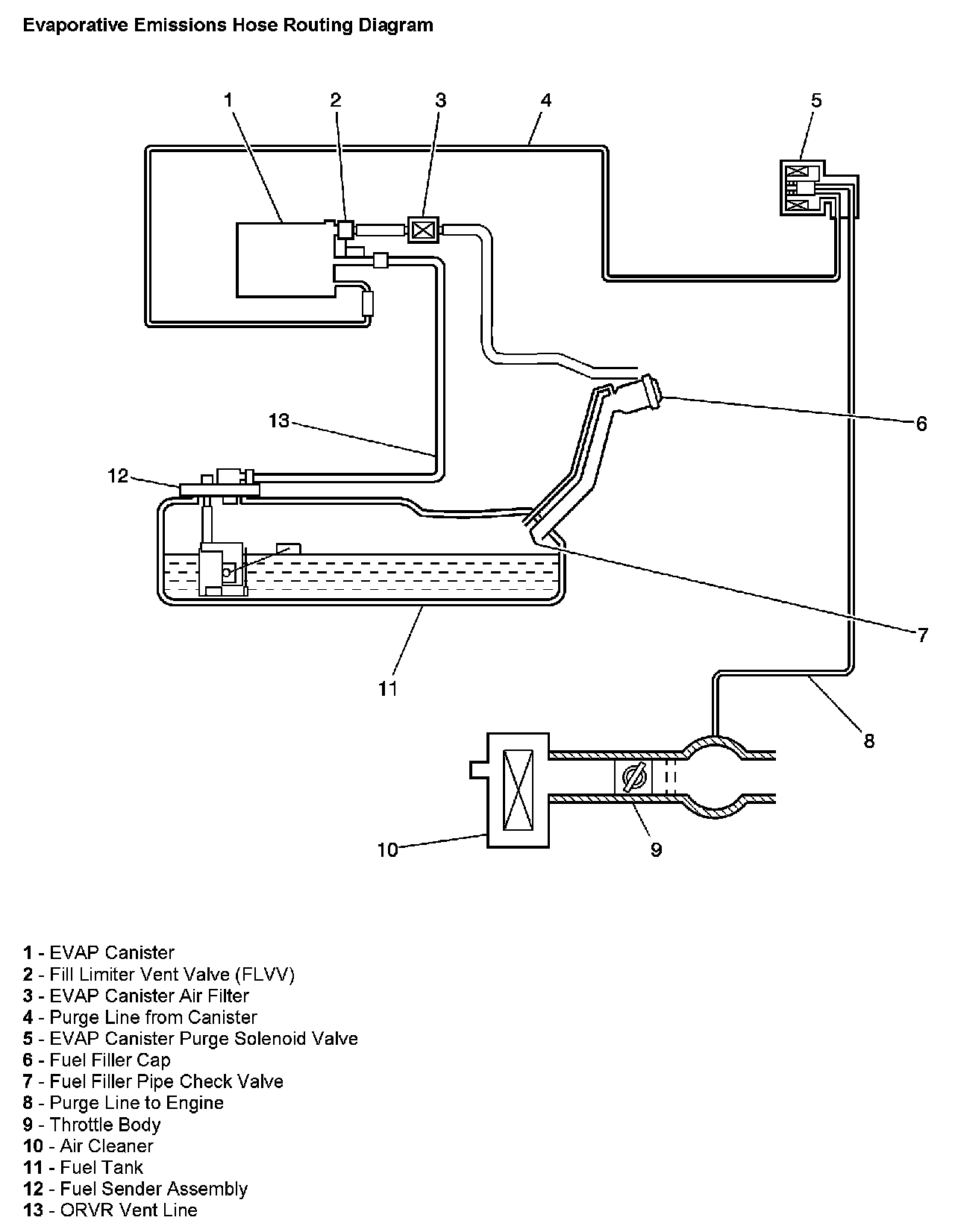

Evaporative Emissions Hose Routing Diagram:
