MU4 - Automatic Transmission
MU4 - Automatic Transmission

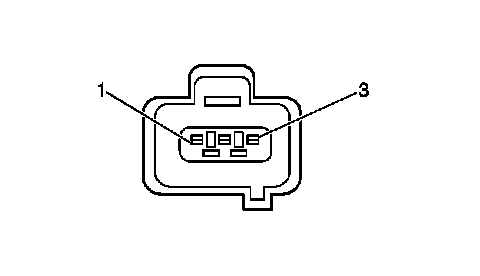

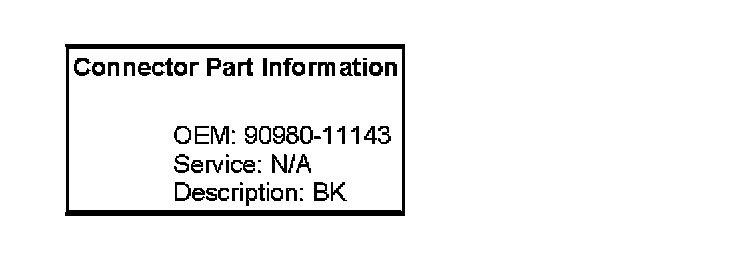

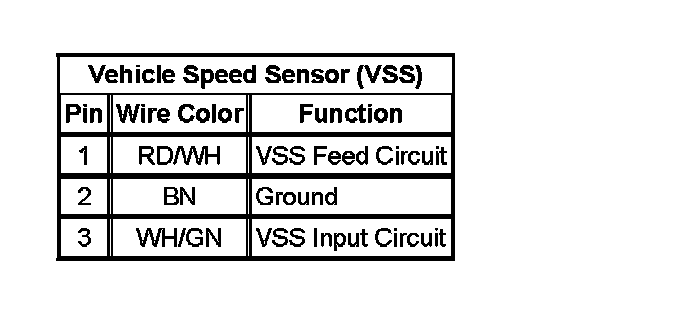

Vehicle Speed Sensor (VSS)
Vehicle Speed Sensor (VSS):
