Home
>>
Pontiac
>>
2007
>>
Vibe L4-1.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Daytime Running Lamp
>>
Diagrams
>>
Connector Views
Connector Views

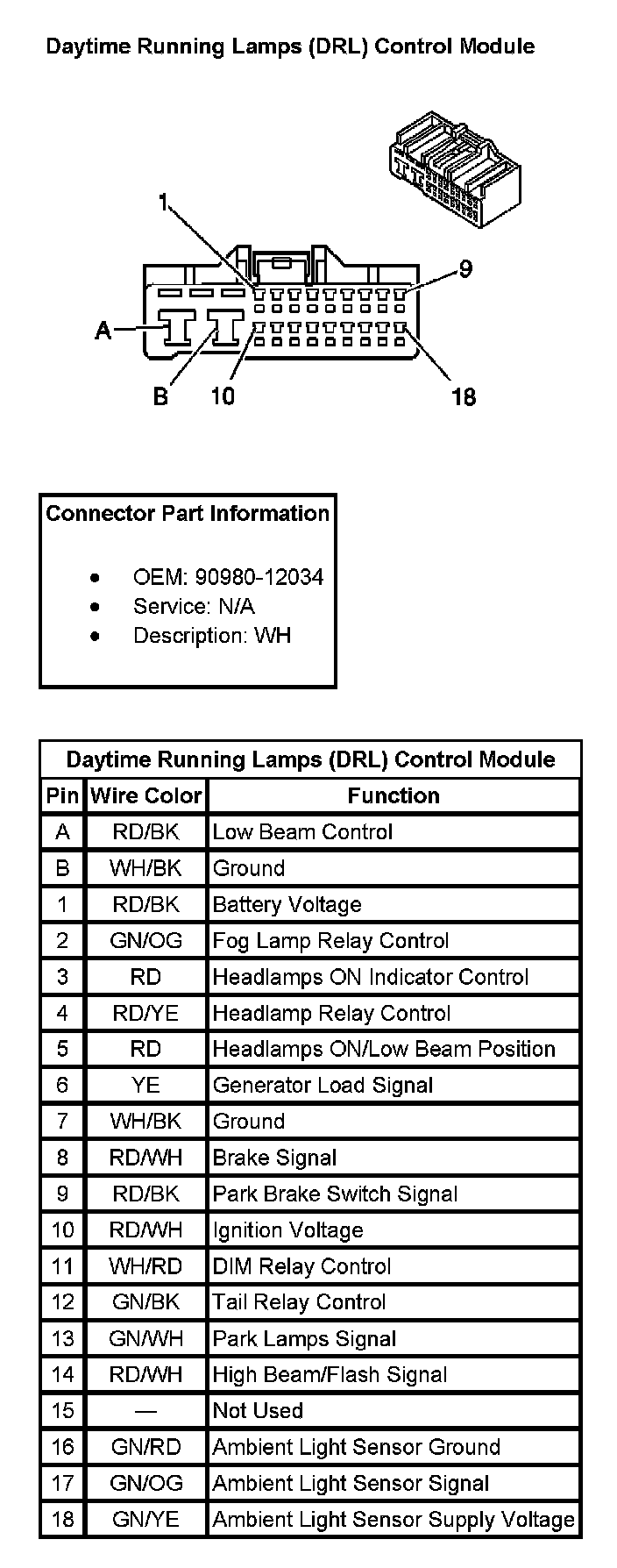

Daytime Running Lamps (DRL) Control Module:
