Pontiac
>>
2007
>>
Vibe L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Multiple Junction Connector
>>
C100 - C199
C100 - C199

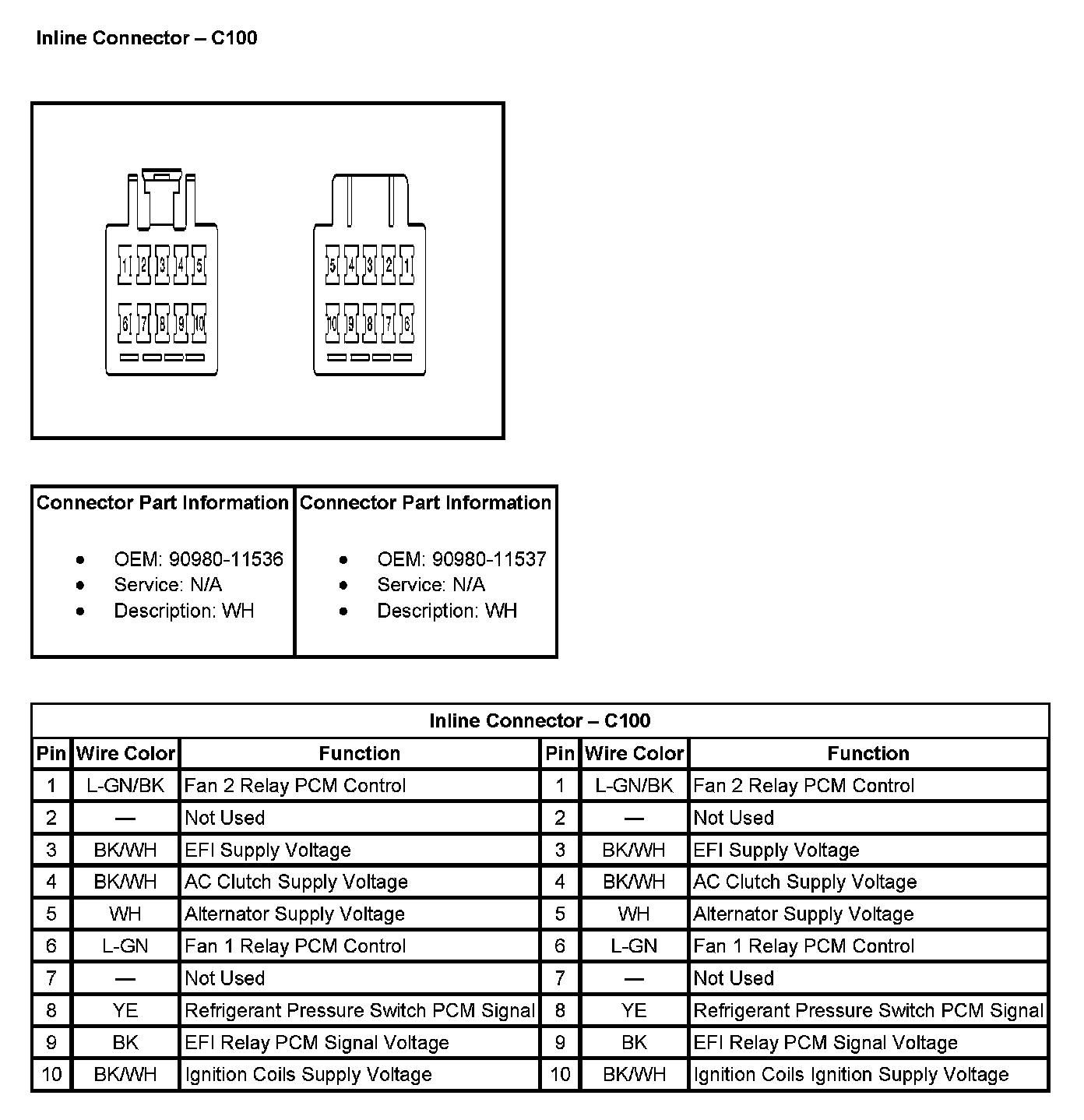

C100:
