System Diagram



Displays and Gages Connector End Views

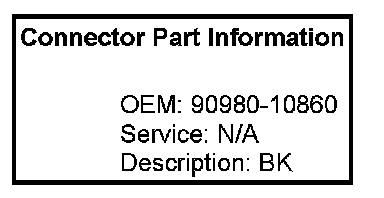

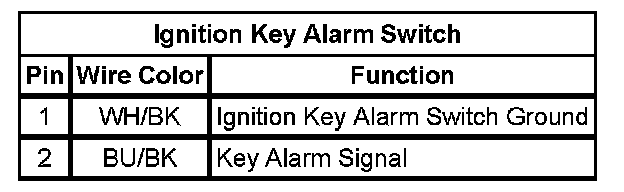

Ignition Key Alarm Switch

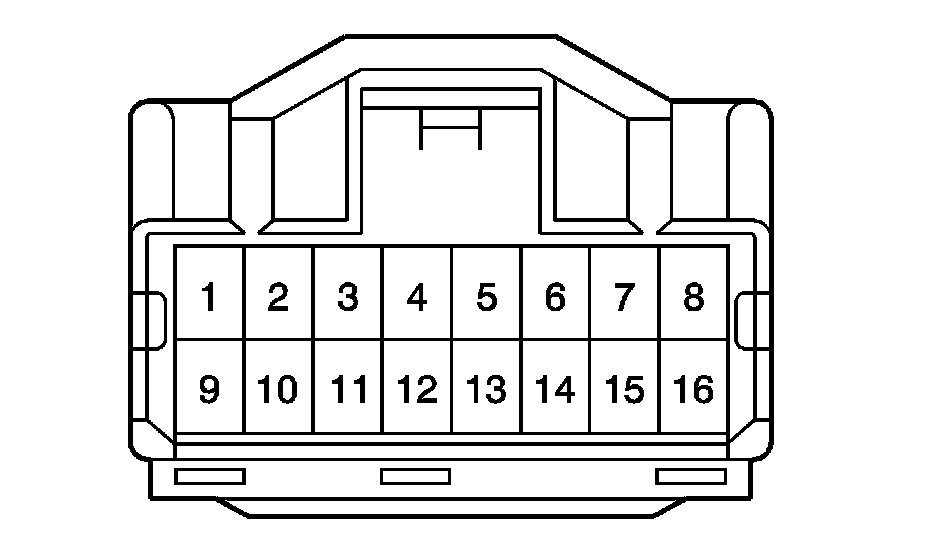

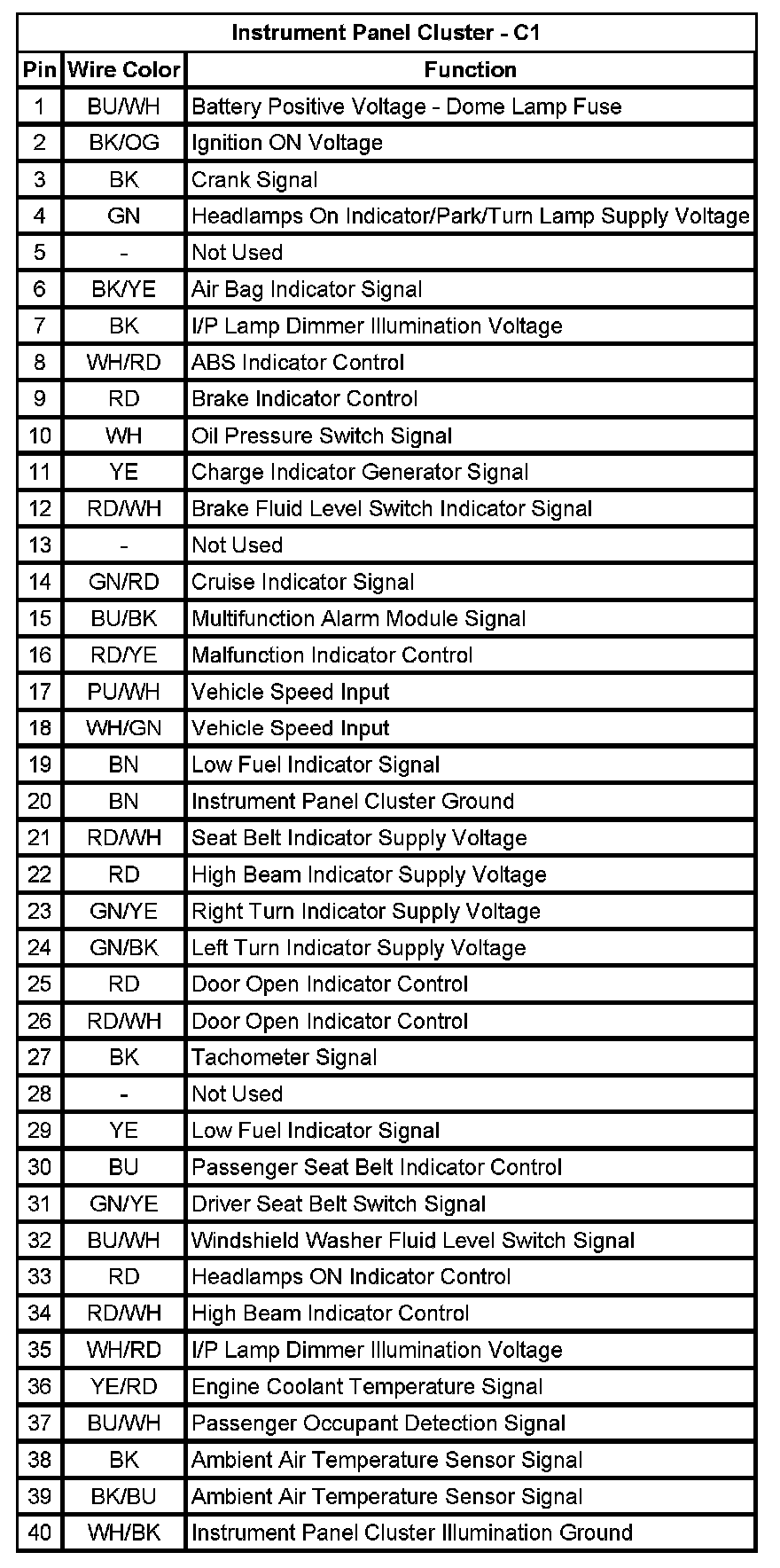

Instrument Panel Cluster - C1

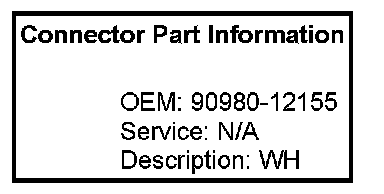

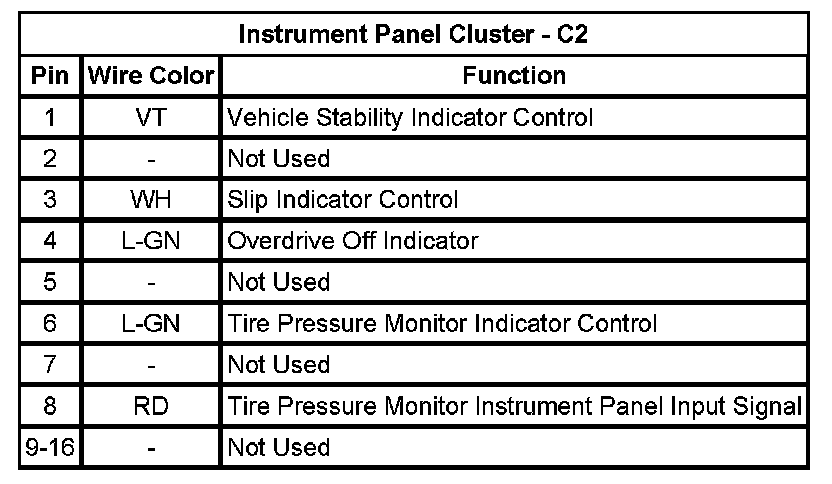

Instrument Panel Cluster - C2
