Fog/Driving Lamp
Fog/Driving Lamp
Left Backup And Rear Fog Lamp:

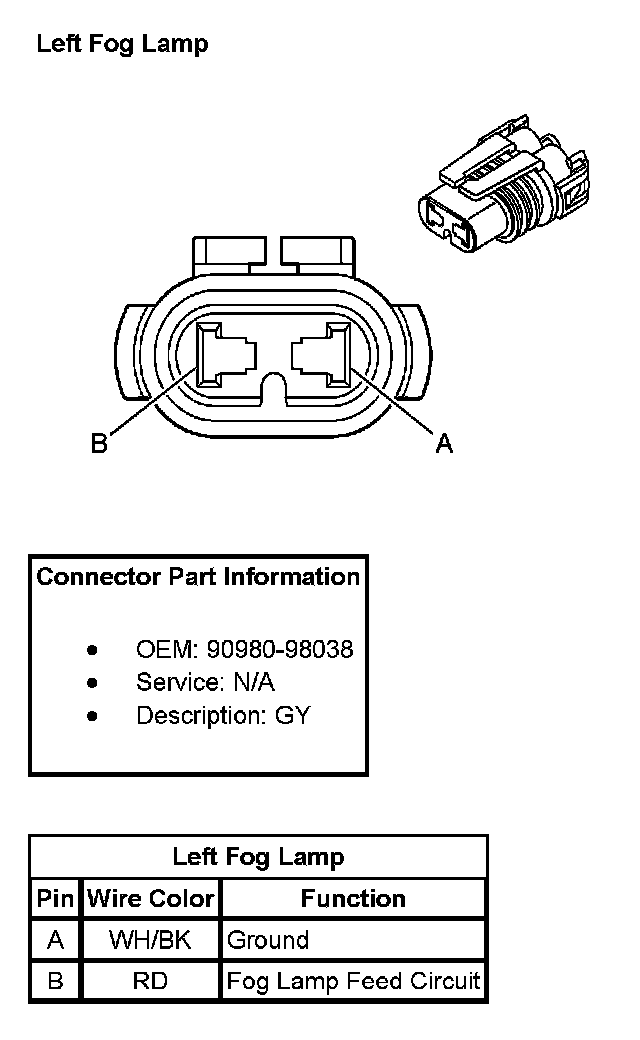

Left Fog Lamp:
Right Backup And Rear Fog Lamp:

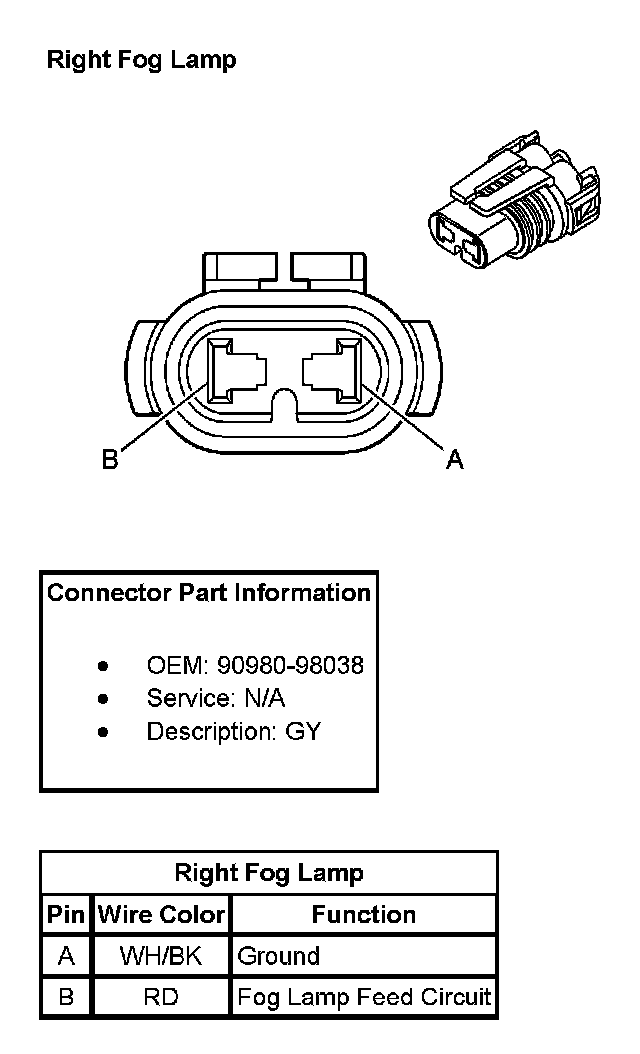

Right Fog Lamp:
