Speaker Replacement - Front Upper

Speaker Replacement - Front Upper

Removal Procedure




1. Remove the front door trim panel.

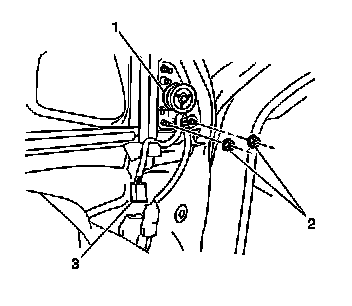

2. Disconnect the speaker electrical connector (3).
3. Remove the 2 nuts (2) from the door.
4. Remove the front upper door speaker (1) from the vehicle.

Installation Procedure




1. Install the speaker (1) to the door.

Notice: Refer to Fastener Notice.

2. Secure the speaker with 2 nut ((2).

Tighten the speaker nuts to 8.0 N.m (71 lb in).
