Pontiac
>>
2007
>>
Solstice L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch
HVAC Connector End Views

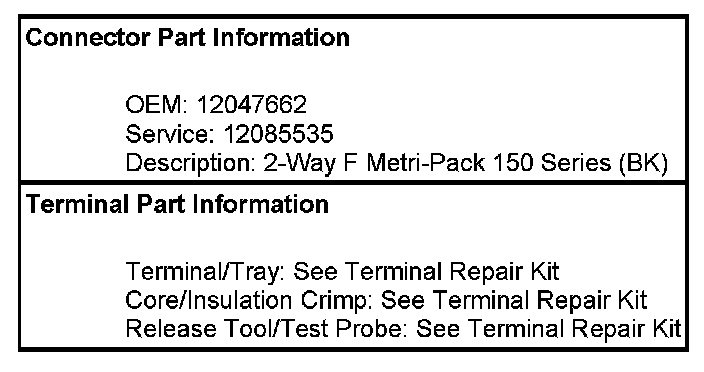

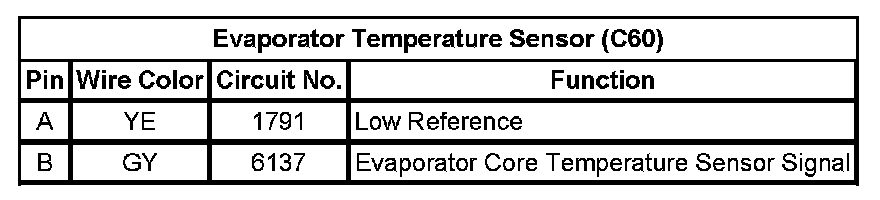

Evaporator Temperature Sensor (C60)
