Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

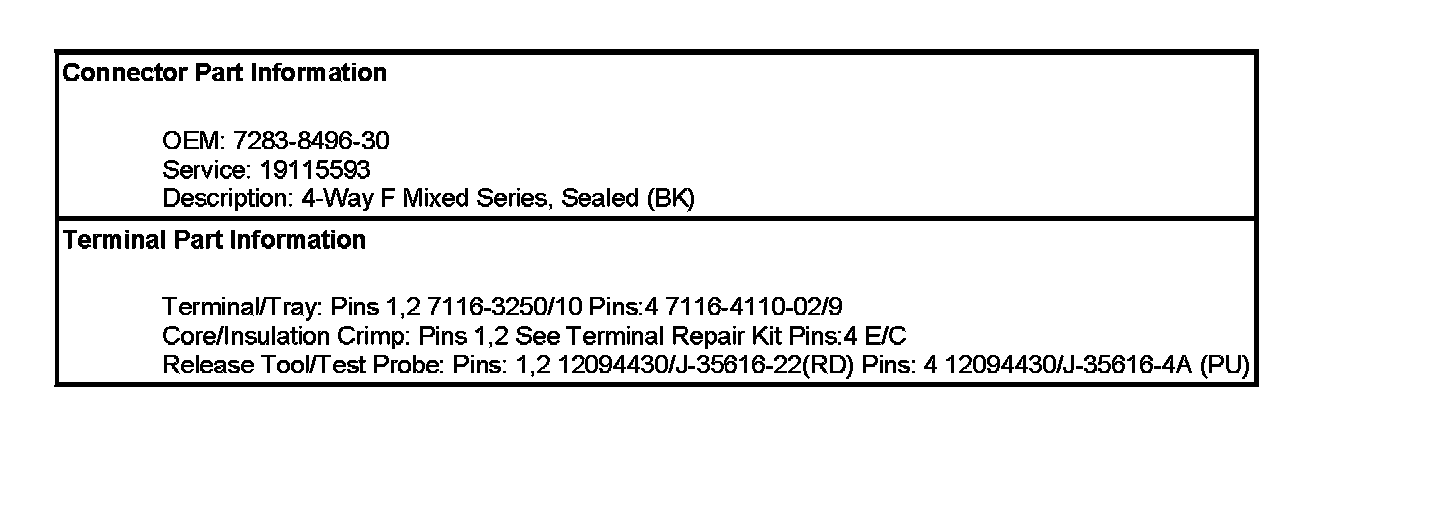

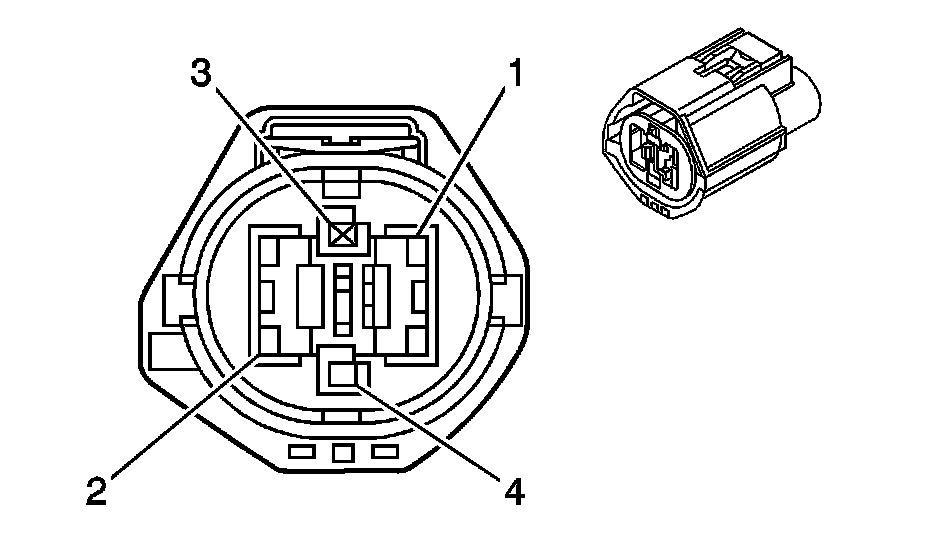

Engine Cooling Fan (LNF)
Engine Cooling Fan (LNF):
