Home >> Pontiac >> 2007 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Coolant Level Sensor

Coolant Level Sensor

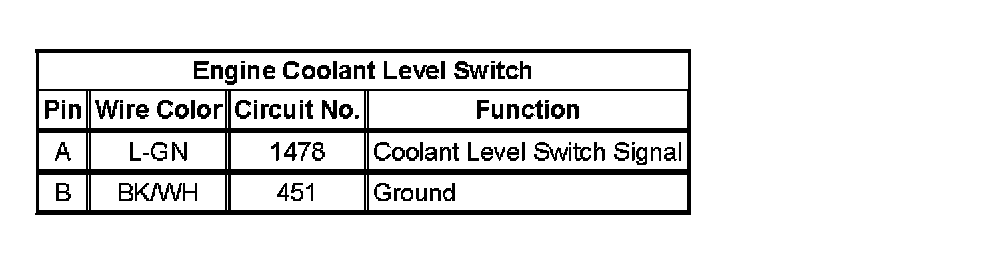

Engine Coolant Level Switch







Engine Coolant Level Switch:
