Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor
(LNF)

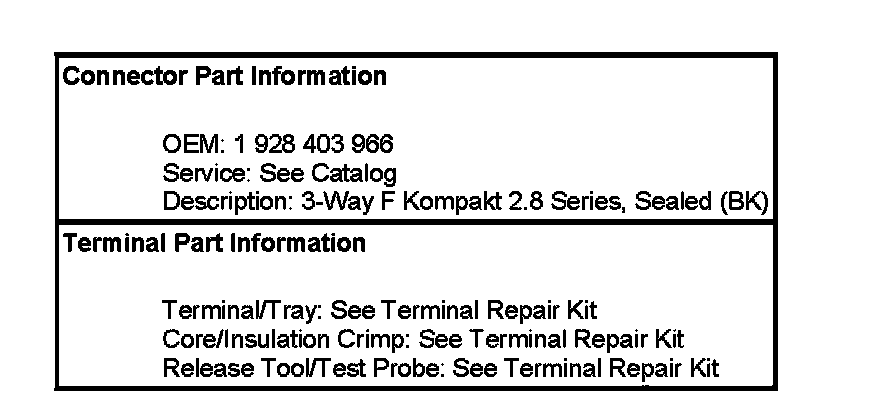

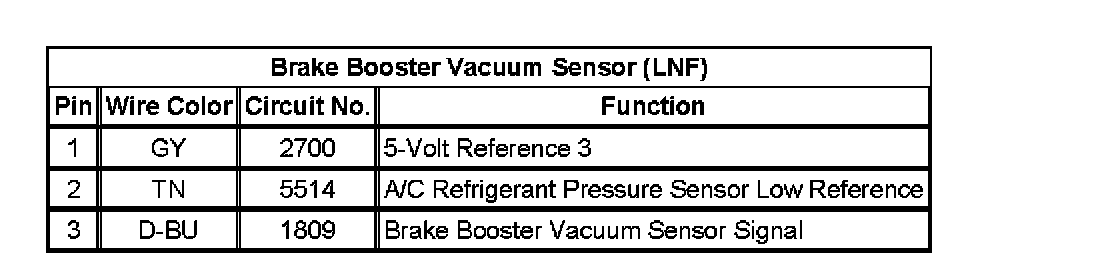

Brake Booster Vacuum Sensor (LNF):
