Transmission Mount Replacement - Left Side

Transmission Mount Replacement - Left Side

Removal Procedure

1. Remove the transaxle bracket.

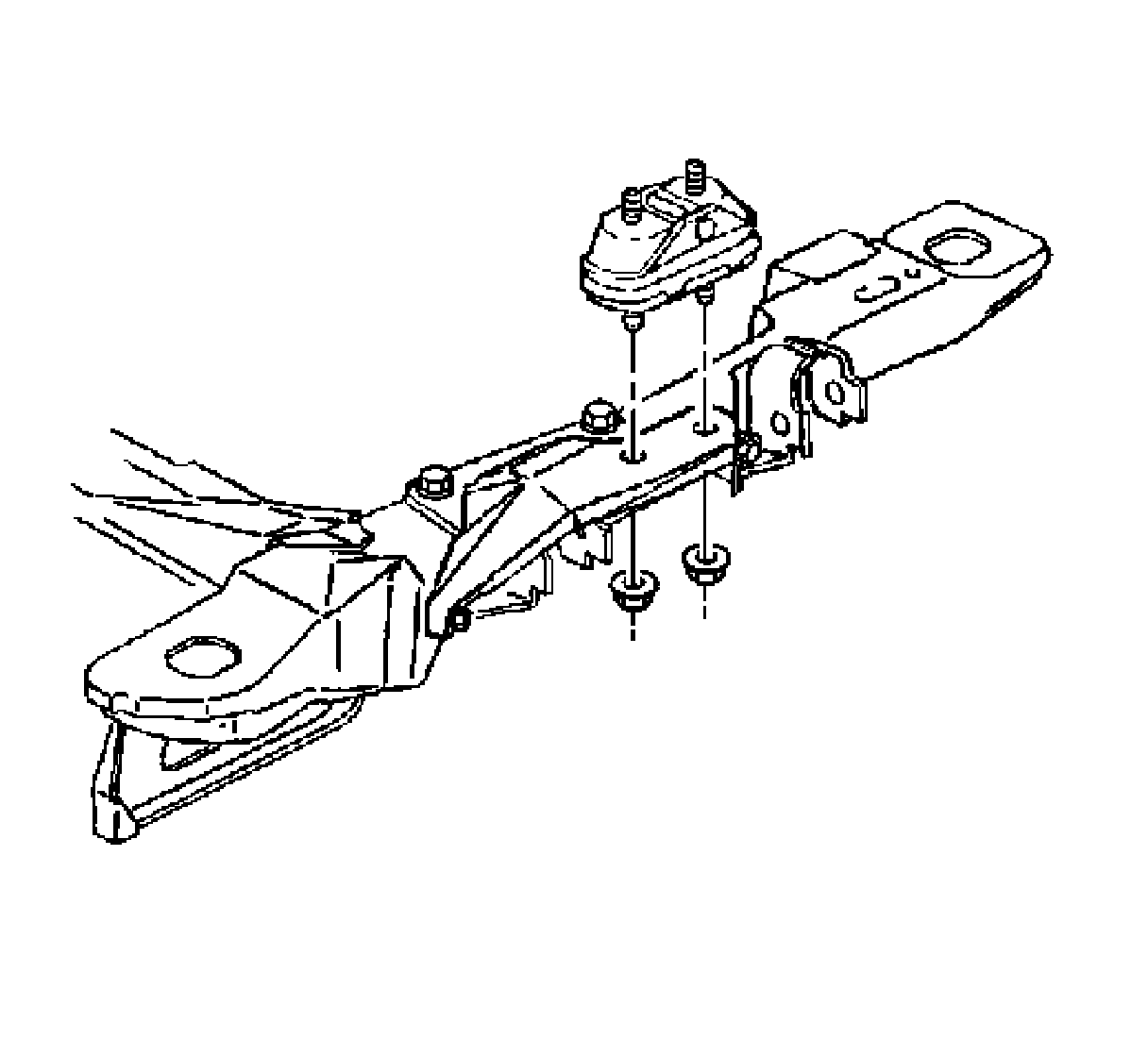

2. Remove the transaxle mount lower nuts from the frame.
3. Remove the transaxle mount from the frame.

Installation Procedure

1. Install the transaxle mount to the frame.





Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transaxle mount lower nuts to the frame.

Tighten the transaxle mount lower nuts to 47 N.m (35 lb ft).

3. Install the transaxle bracket.
