Head Up Display Switch Replacement



Head Up Display Switch Replacement

Removal Procedure




1. Remove the floor console.

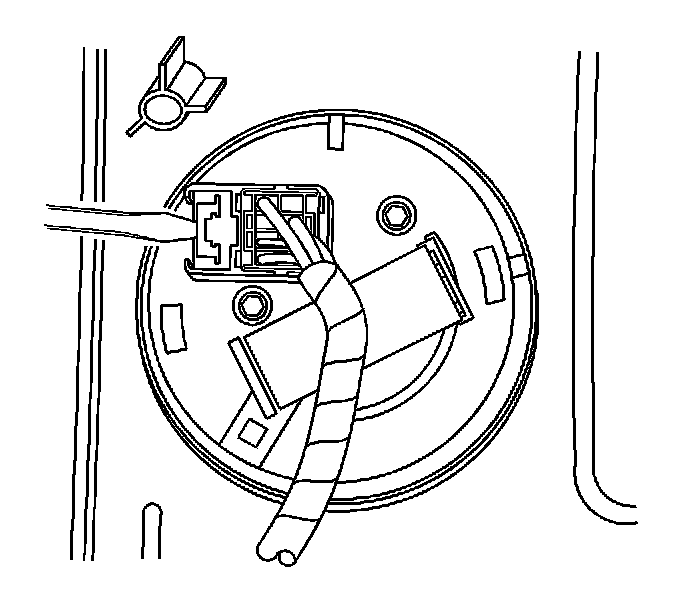

2. Disconnect the electrical connector.

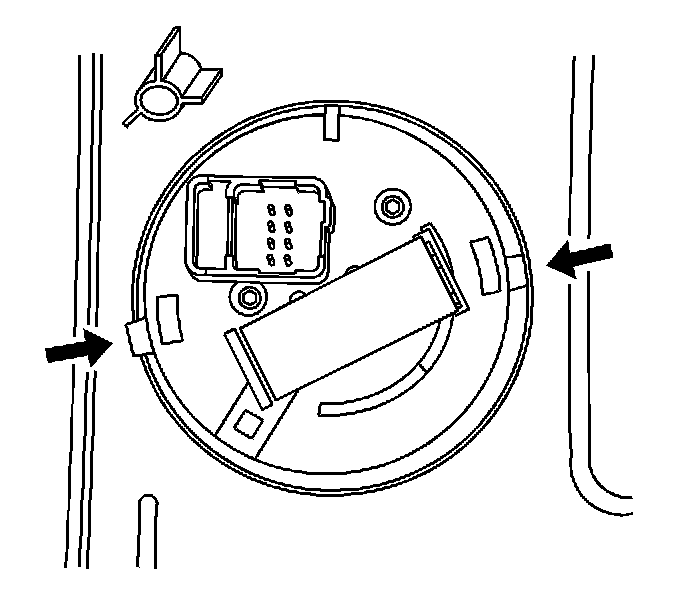

3. Disengage the retainers.

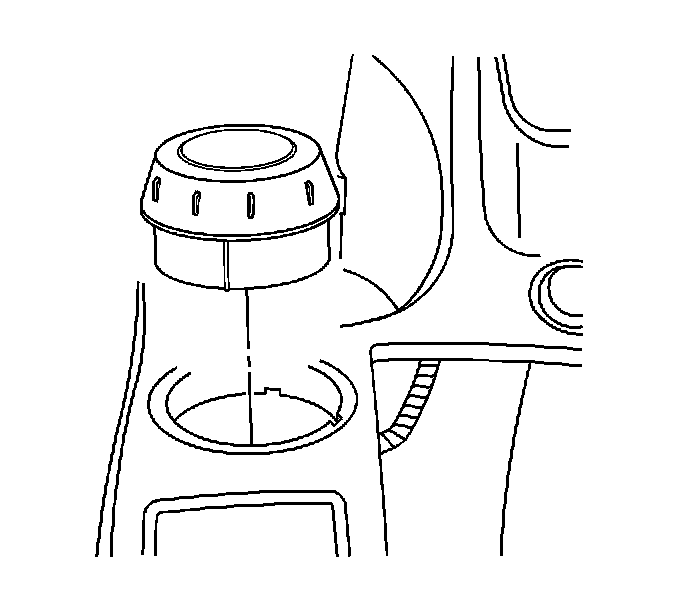

4. Press the switch from the bottom out the top of the floor console. Remove the head up display switch.

Installation Procedure




1. Align the retainers on the switch with the openings in the floor console.




2. Press the head up display switch through the opening in the floor console.

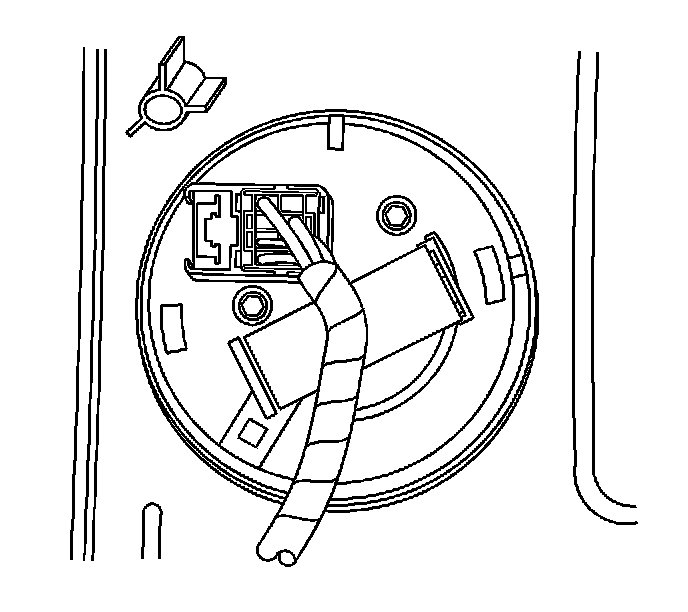

3. Connect the electrical connector.
4. Install the floor console.
