Pontiac
>>
2007
>>
Grand Prix V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor

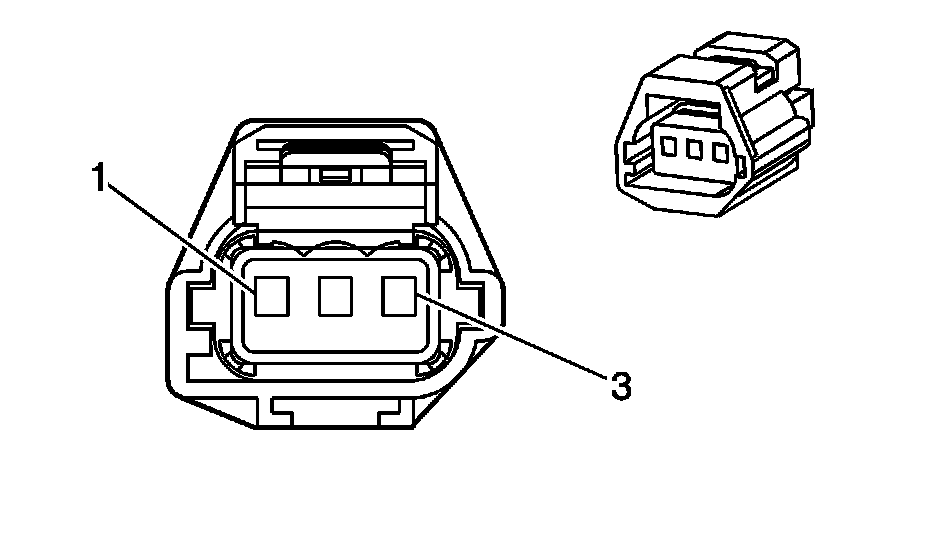

Engine Controls Connector End Views

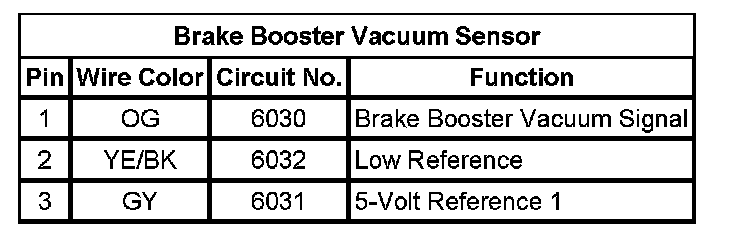

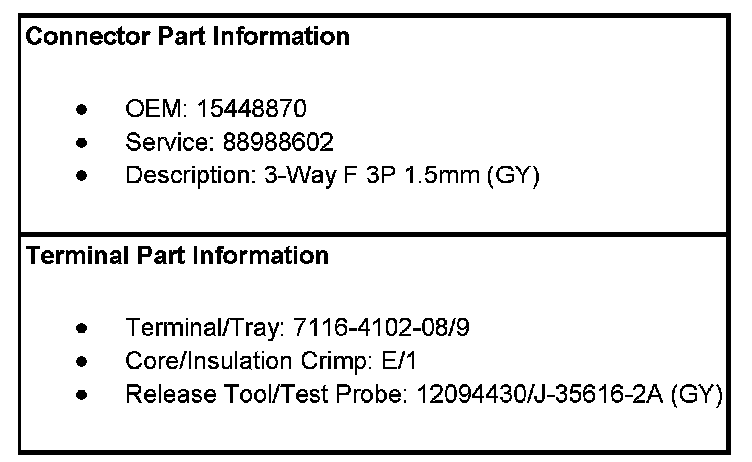

Brake Booster Vacuum Sensor
