Front Suspension

Stabilizer Shaft Link Replacement

Removal Procedure

1. Raise and support the vehicle. refer to Vehicle Lifting.

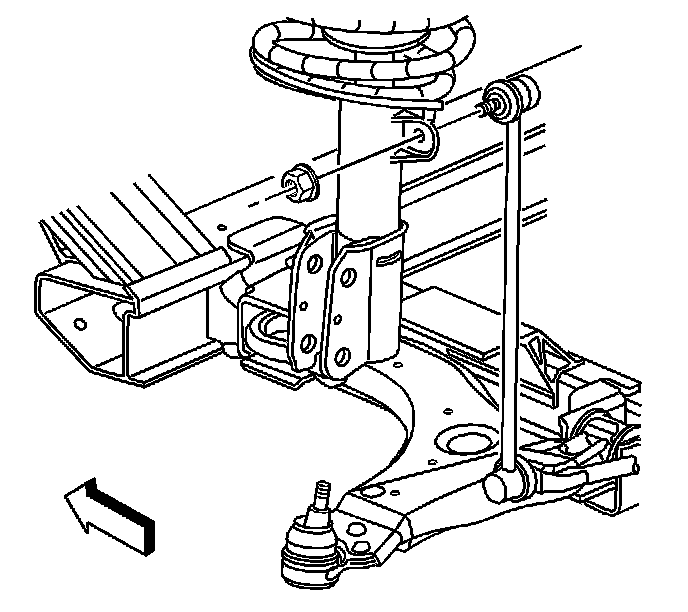

2. Disconnect the stabilizer link from the stabilizer shaft.




3. Disconnect the stabilizer link from the strut assembly and remove from the vehicle.

Installation Procedure




1. Connect the stabilizer link to the strut assembly.




2. Using the appropriate tool, hold the stud links so as not to allow them to rotate while tightening the stabilizer link nuts to the specifications.

Notice: Refer to Fastener Notice in Service Precautions.

3. Connect the stabilizer link to the stabilizer shaft.

Tighten the stabilizer link nuts to 60 N.m (44 lb ft).

4. Lower the vehicle.
