Cabin Temperature Sensor / Switch
Cabin Temperature Sensor / Switch

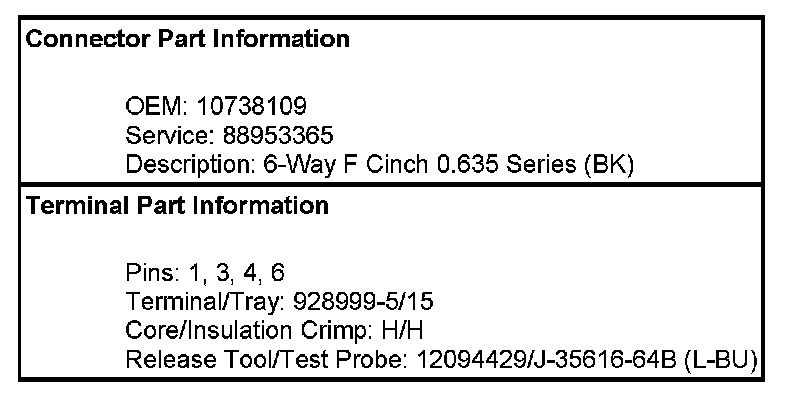

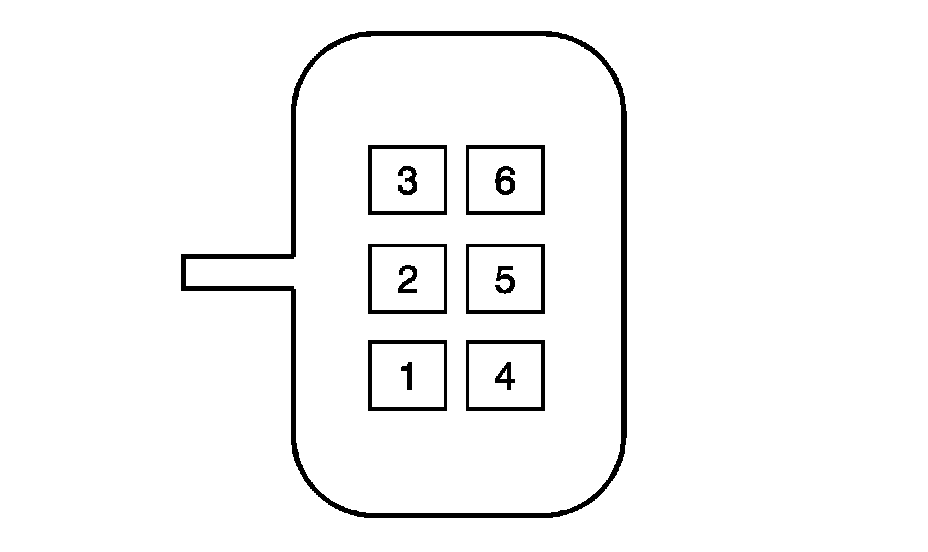

HVAC Connector End Views

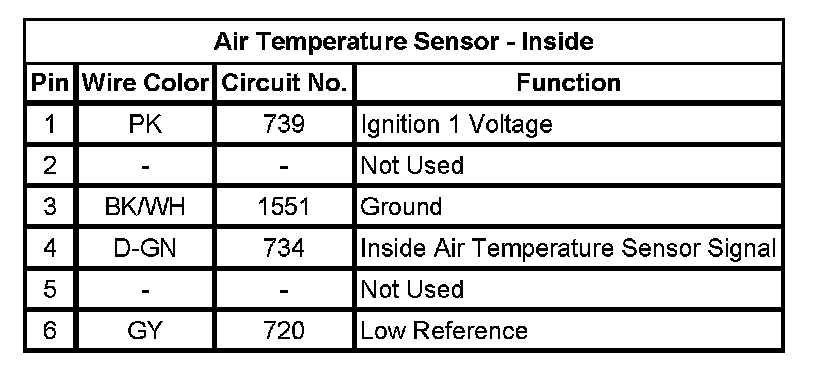

Air Temperature Sensor - Inside
