Pontiac
>>
2007
>>
Grand Prix V6-3.8L SC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Torque Converter Clutch Solenoid
>>
Locations
>>
Connector Locations
Connector Locations

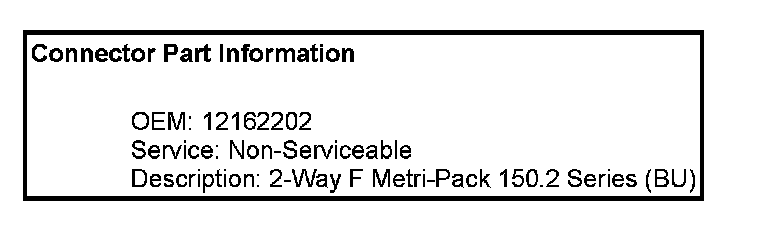

Automatic Transmission Internal Connector End Views

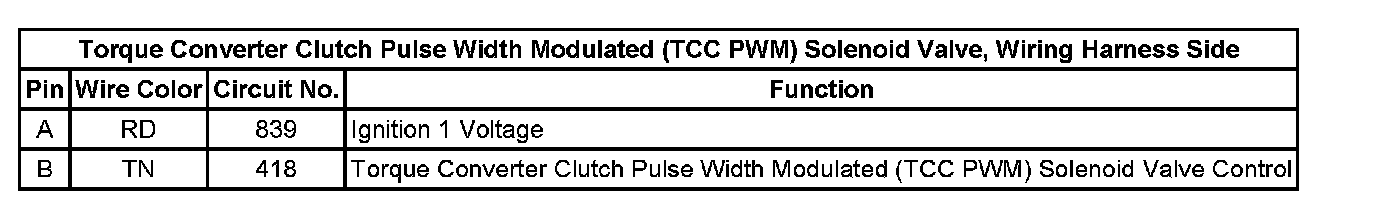

Torque Converter Clutch Pulse Width Modulated Solenoid Valve, Wiring Harness Side:
