Grand Prix V6-3.8L SC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Diagrams
>>
Connector Views
Connector Views

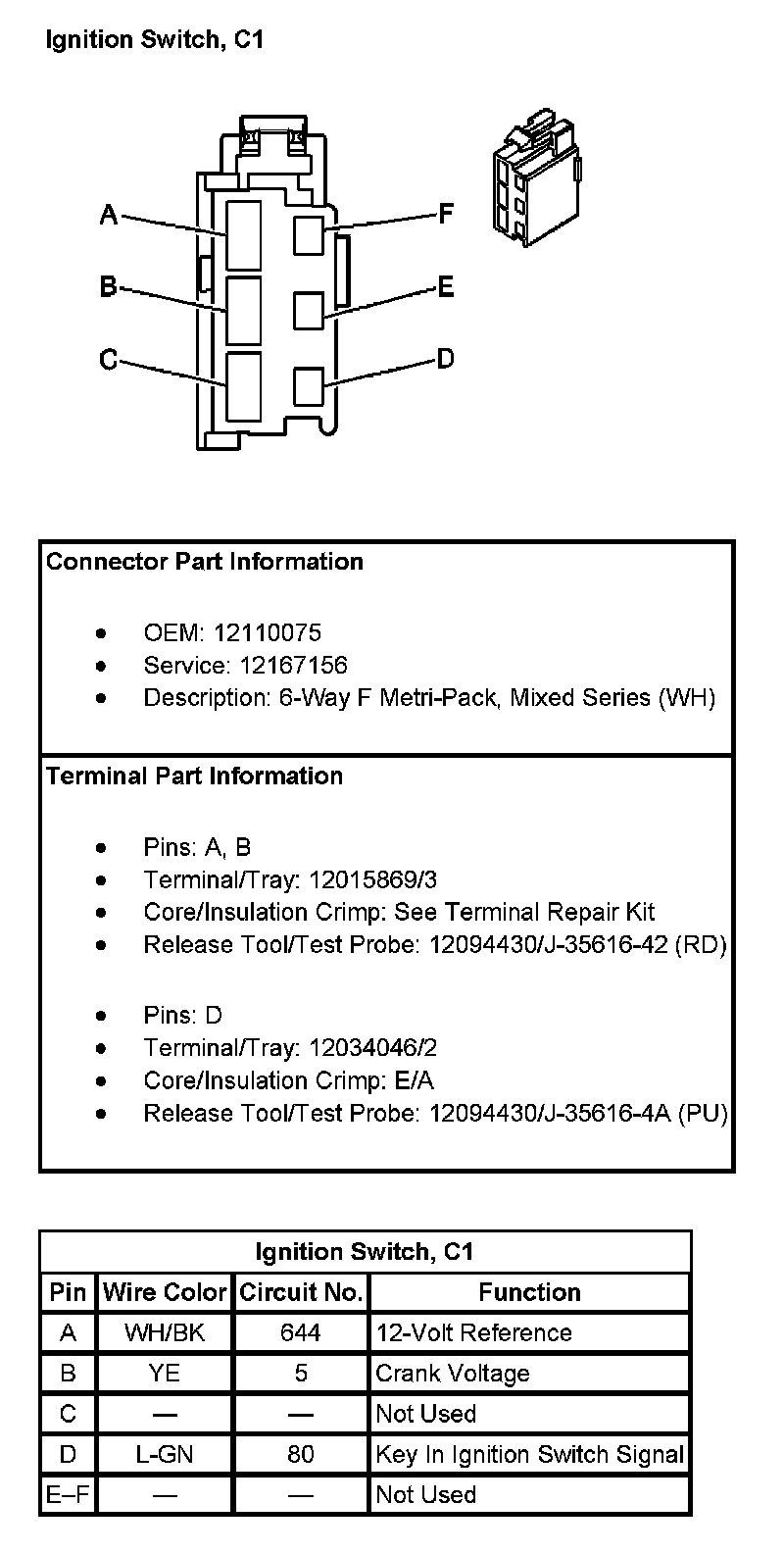

Ignition Switch, C1:

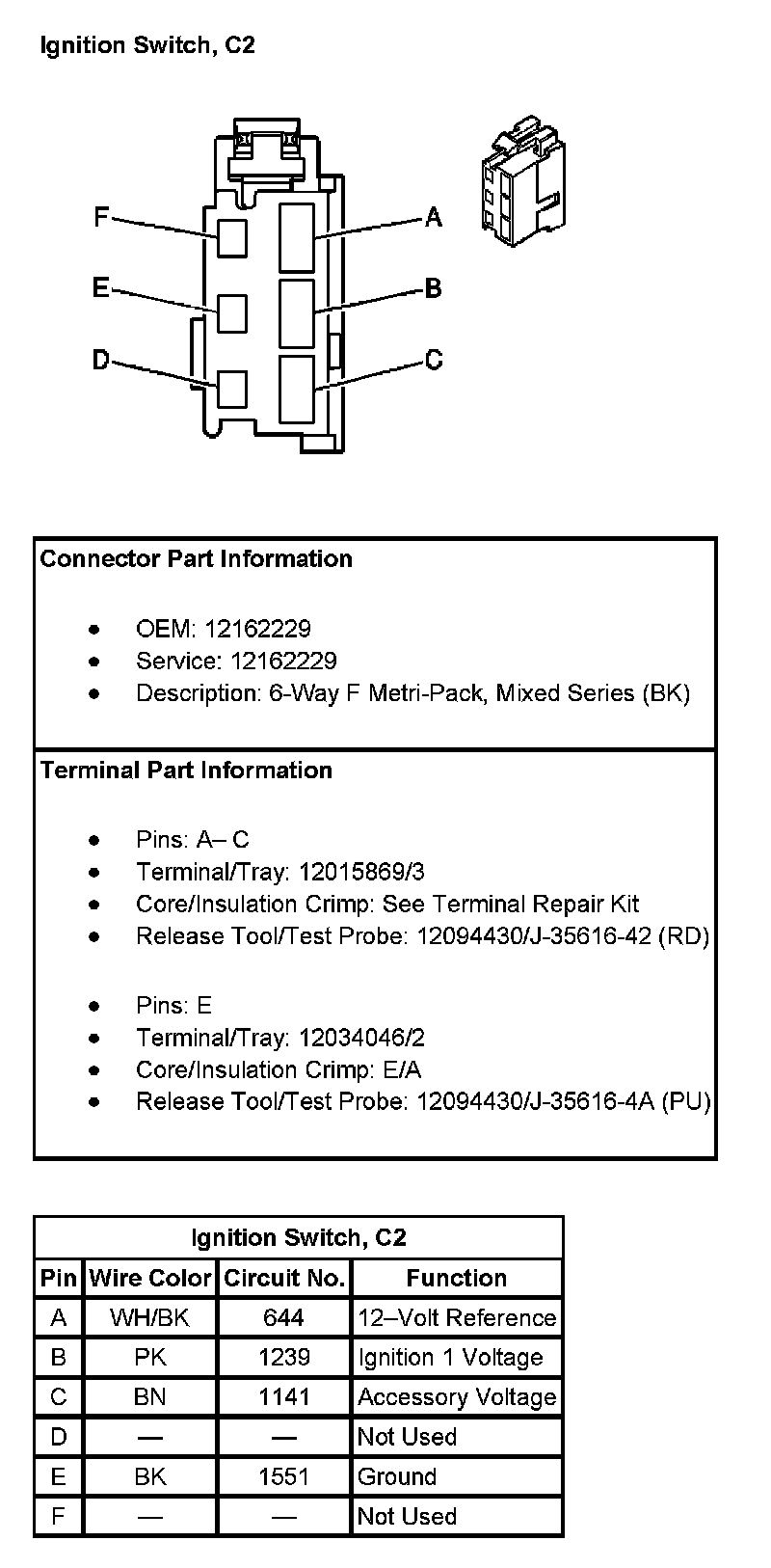

Ignition Switch, C2:
