Air Injection Pump Relay: Diagrams

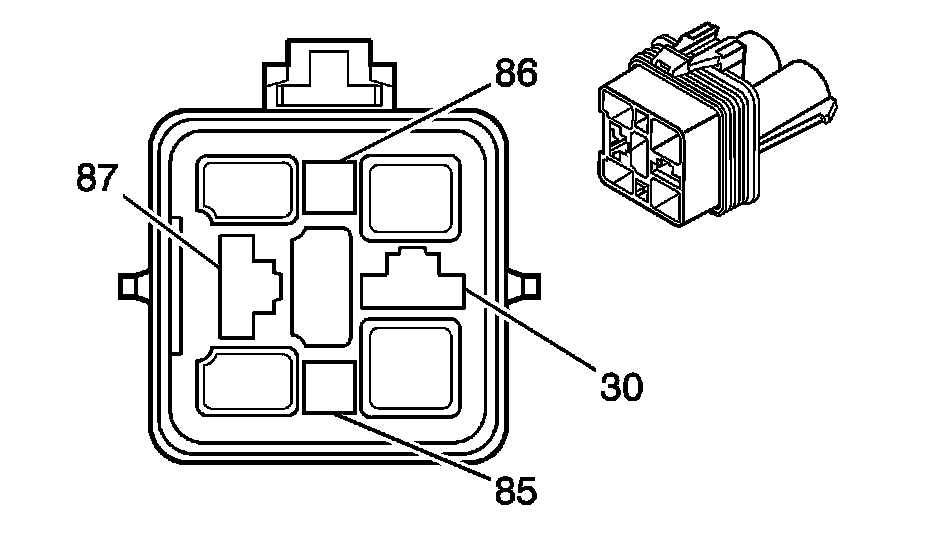

Engine Controls Connector End Views

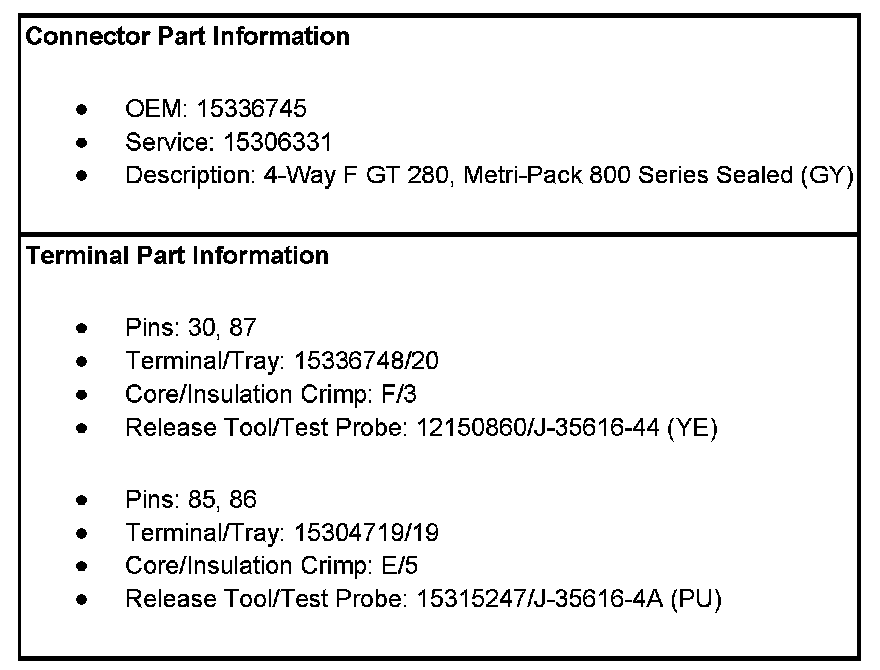

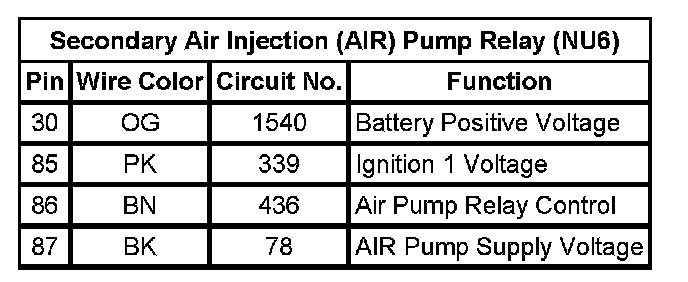

Secondary Air Injection (AIR) Pump Relay (NU6)
