Evaporative Emission (EVAP) Hoses/Pipes Replacement - Engine/Chassis



Evaporative Emission Hoses/Pipes Replacement - Engine/Chassis

Removal Procedure

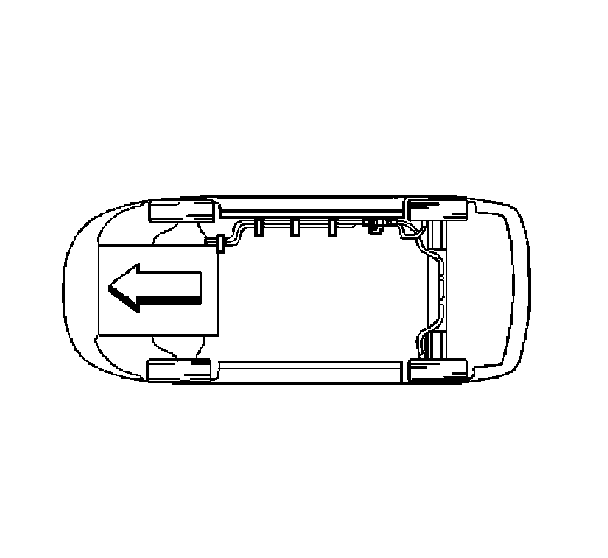

1. Remove the fuel hose/pipe bundle.
2. Remove the evaporative emission (EVAP) purge pipe from the fuel bundle.

Installation Procedure

1. Install the EVAP purge pipe into the fuel bundle.




2. Install the fuel hose/pipe bundle.
