92. Drive Belt Idler Pulley Bracket Installation



Drive Belt Idler Pulley Bracket Installation

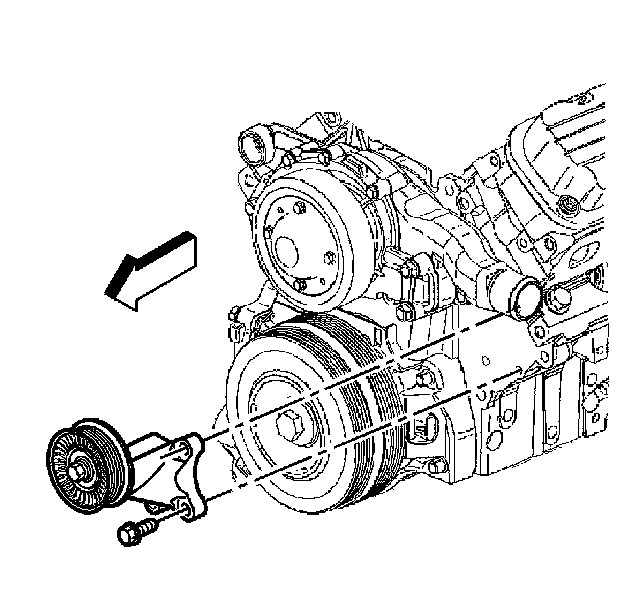

1. Install the drive belt idler pulley bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the drive belt idler pulley bracket bolts.

Tighten the drive belt idler pulley bracket bolts to 30 N.m (22 lb ft).
