Engine Mount Strut Bracket Replacement - Left

Engine Mount Strut Bracket Replacement - Left Side

Removal Procedure

1. Drain the engine coolant from the cooling system.
2. Remove the engine coolant temperature sensor.

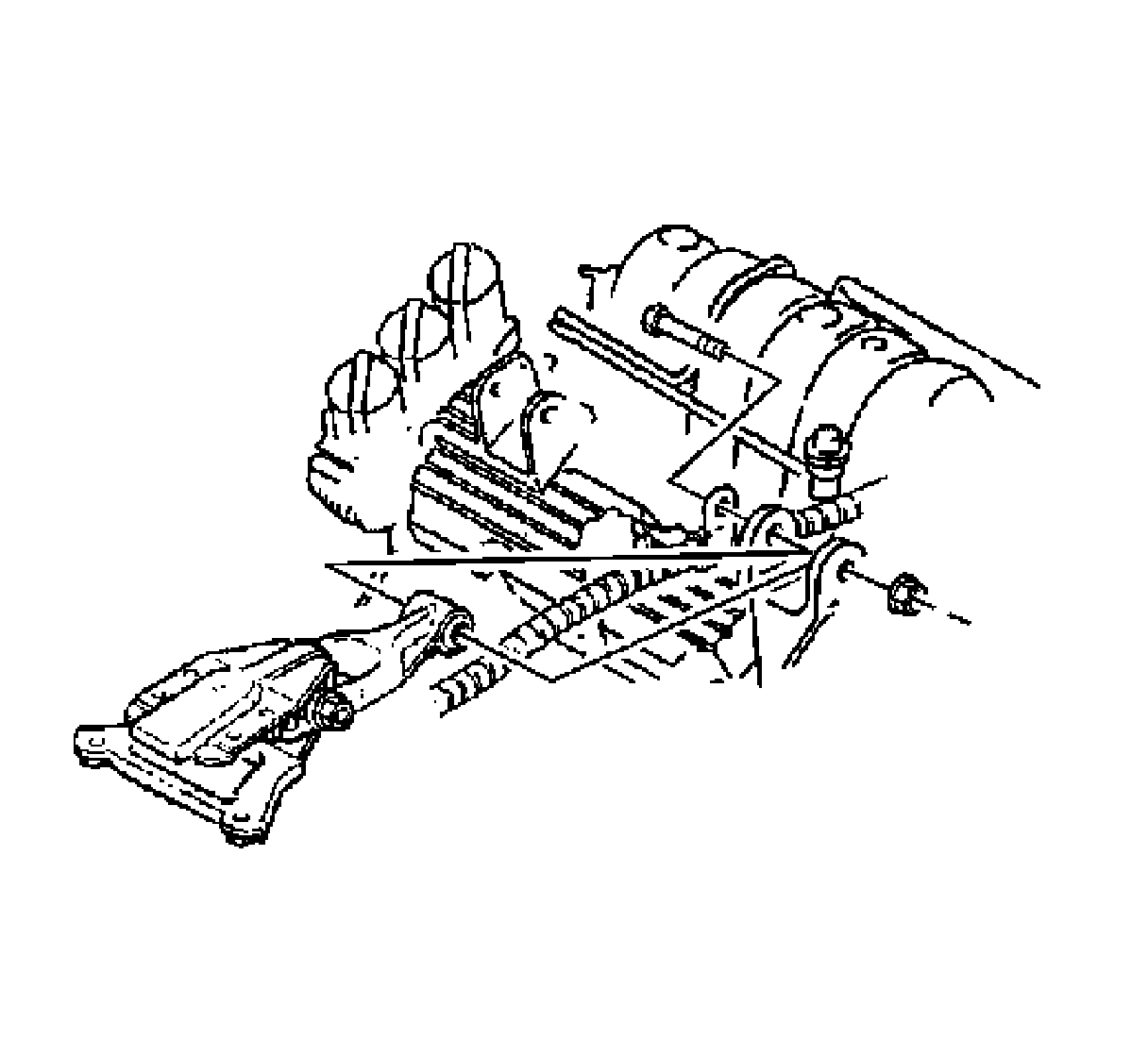

3. Remove the engine mount strut at the left engine mount strut bracket.

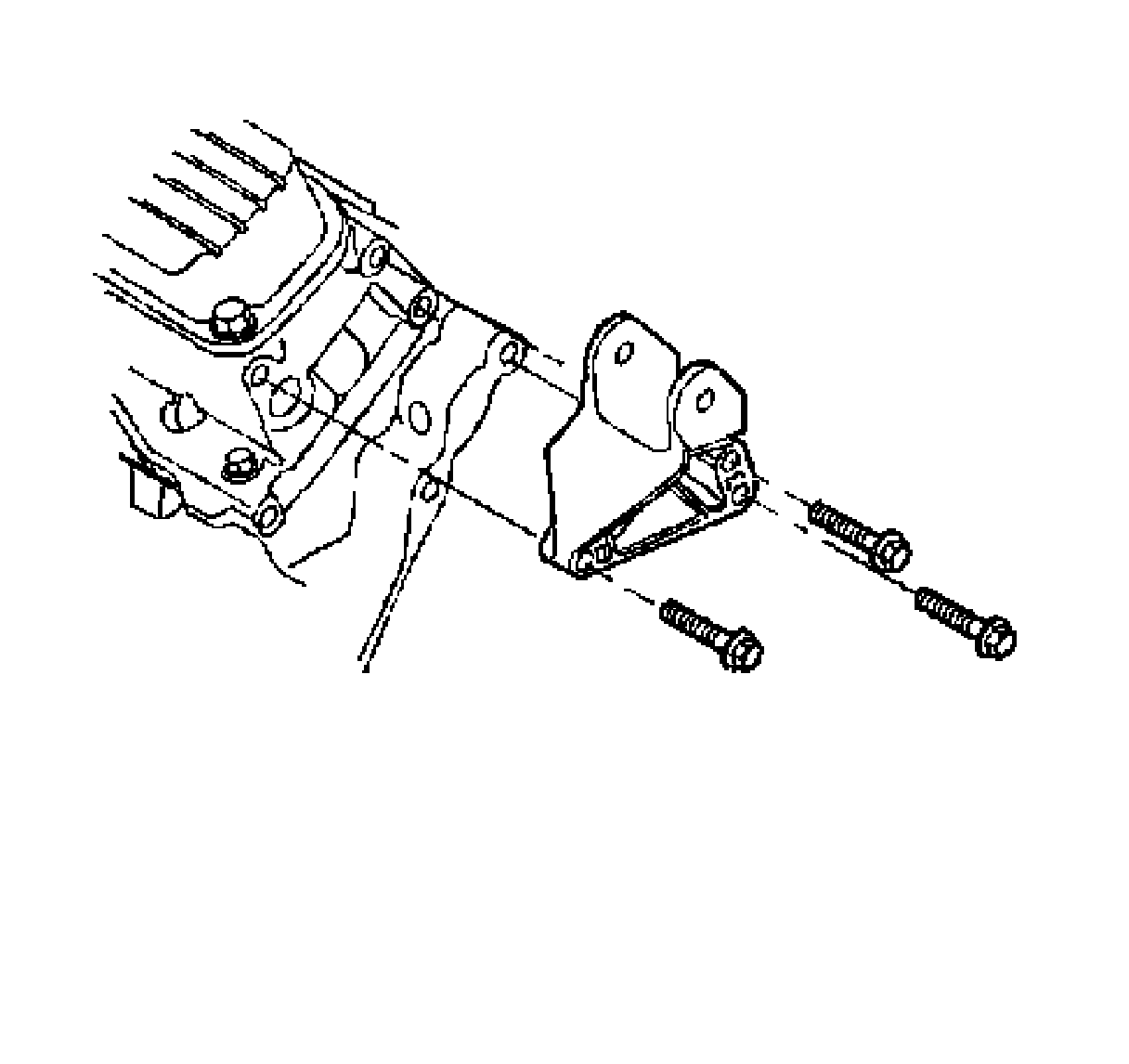

4. Remove the engine mount strut bracket bolts.
5. Remove the engine mount strut bracket.

Installation Procedure




1. Install the engine mount strut bracket to the head.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount strut bracket bolts.

Tighten the bolts to 50 N.m (37 lb ft).




3. Install the engine mount strut to the left engine mount strut bracket.
4. Install the engine coolant temperature sensor.
5. Fill the cooling system with engine coolant.
