Engine Mount Replacement - Right

Engine Mount Replacement - Right Side

Removal Procedure

Caution: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Remove the fuel injector sight shield.
3. Disconnect the intake air temperature (IAT) sensor electrical connector.
4. Remove the air inlet duct from the throttle body.
5. Remove the right and left engine mount struts.
6. Remove the drive belt.
7. Raise and support the vehicle.
8. Remove the right front tire and wheel.




9. Remove the right engine splash shield.
10. Remove the power steering oil cooler pipe brackets from the frame.

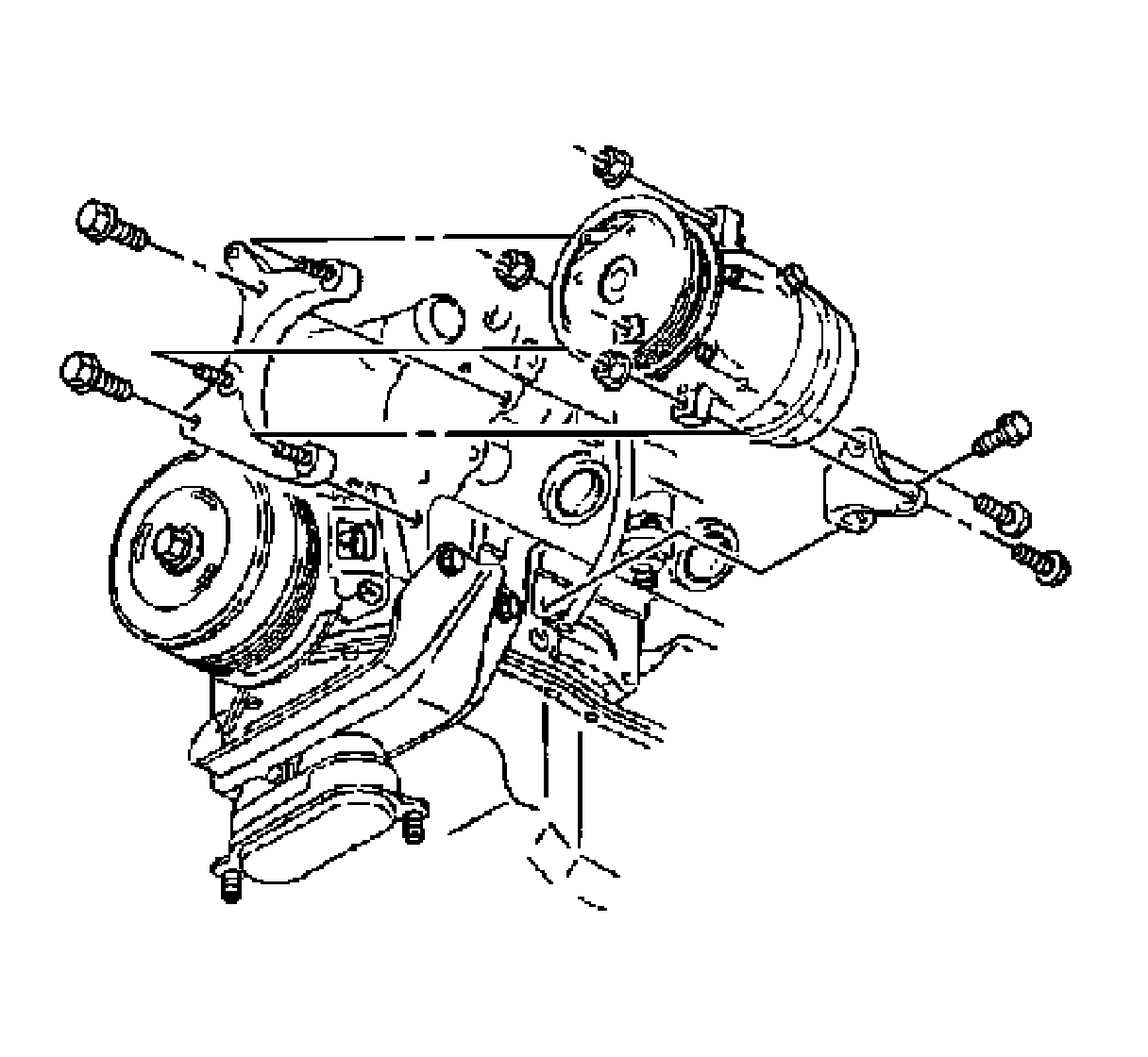

11. Remove the A/C compressor and the A/C compressor bracket. DO NOT discharge the A/C system. Secure the compressor.

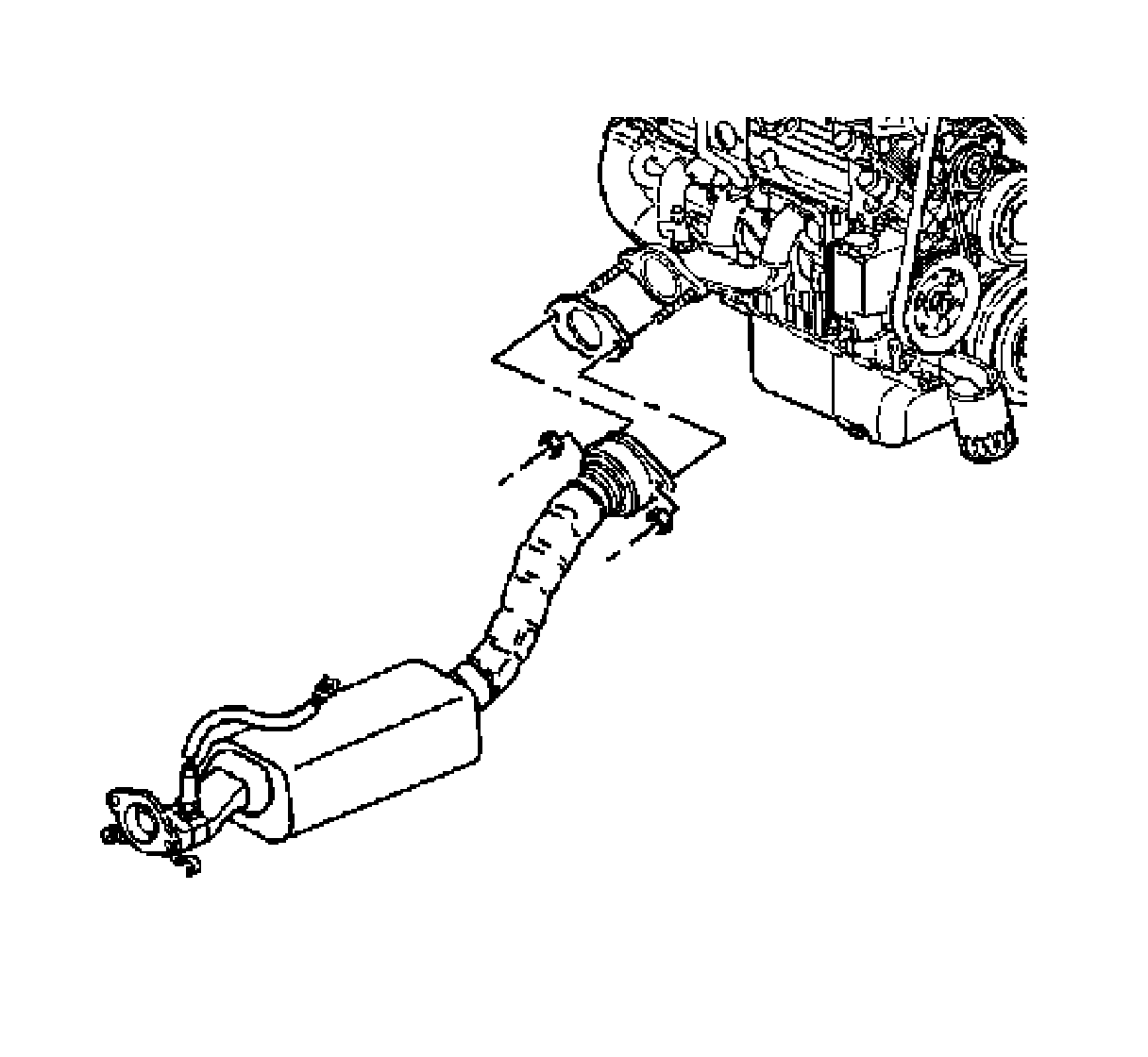

12. Remove the right exhaust manifold pipe stud nuts from the catalytic converter.

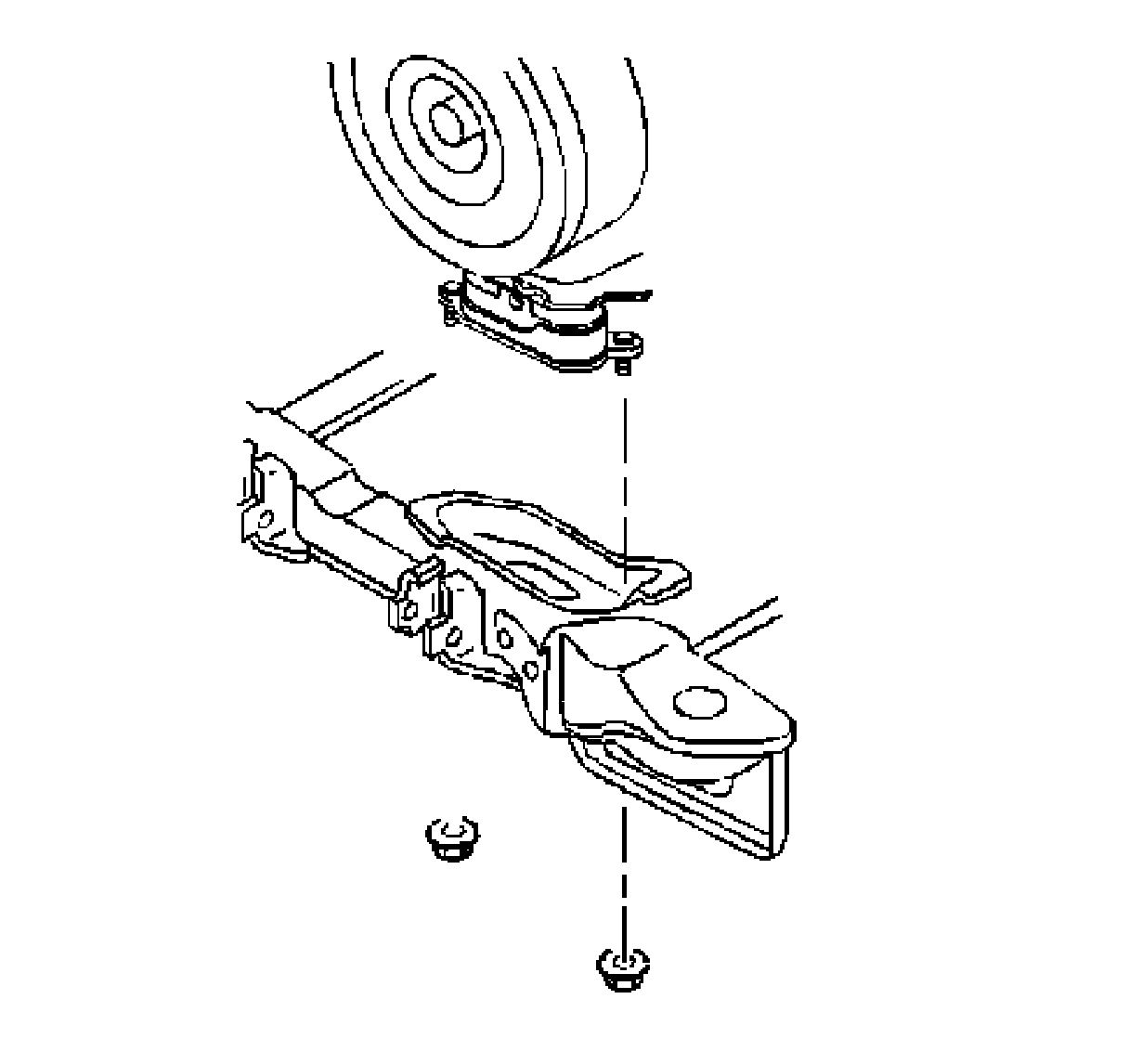

13. Remove the engine mount lower nuts from the frame.
14. Lower the vehicle.
15. Install the engine support fixture.
16. Use the engine support fixture to raise the engine.
17. Raise the vehicle.

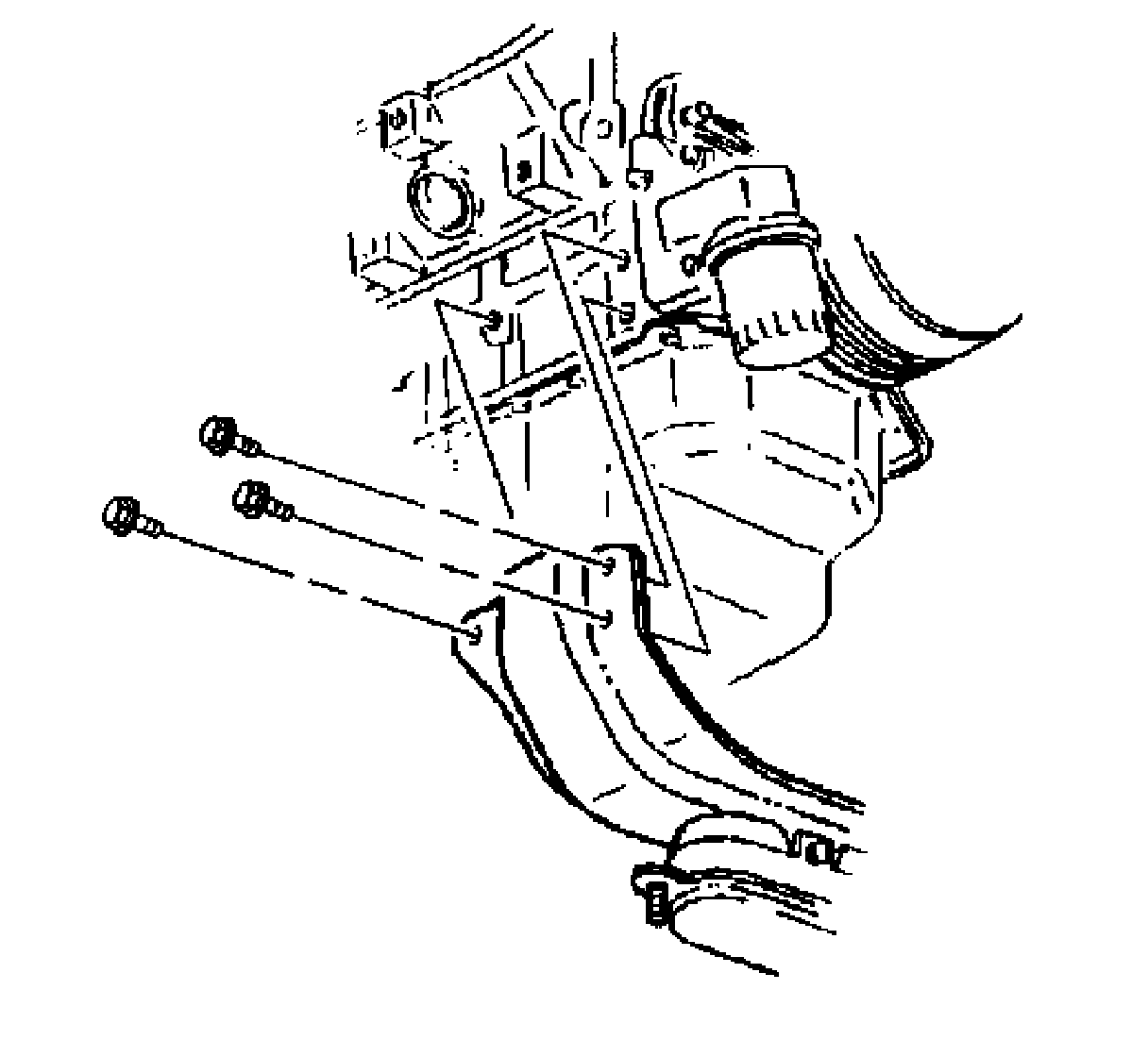

18. Remove the left engine mount bracket bolts from the engine.

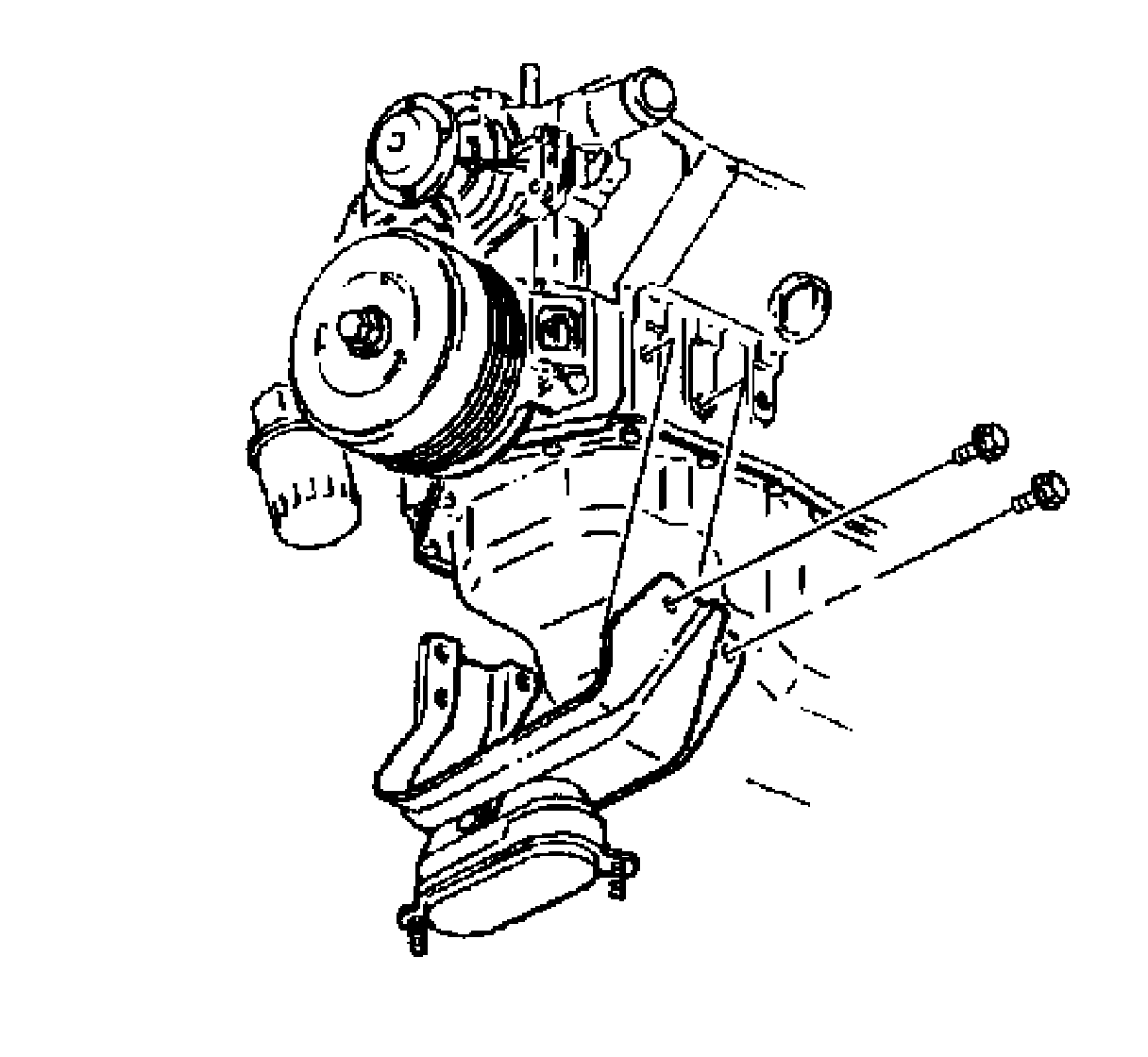

19. Remove the right engine mount bracket bolts from the engine.
20. Support the frame with jackstands.
21. Loosen the left side frame bolts. Remove the right side frame bolts. Using the jackstands lower the frame for engine mount bracket removal.
22. Remove the engine mount bracket with the engine mount from the engine.

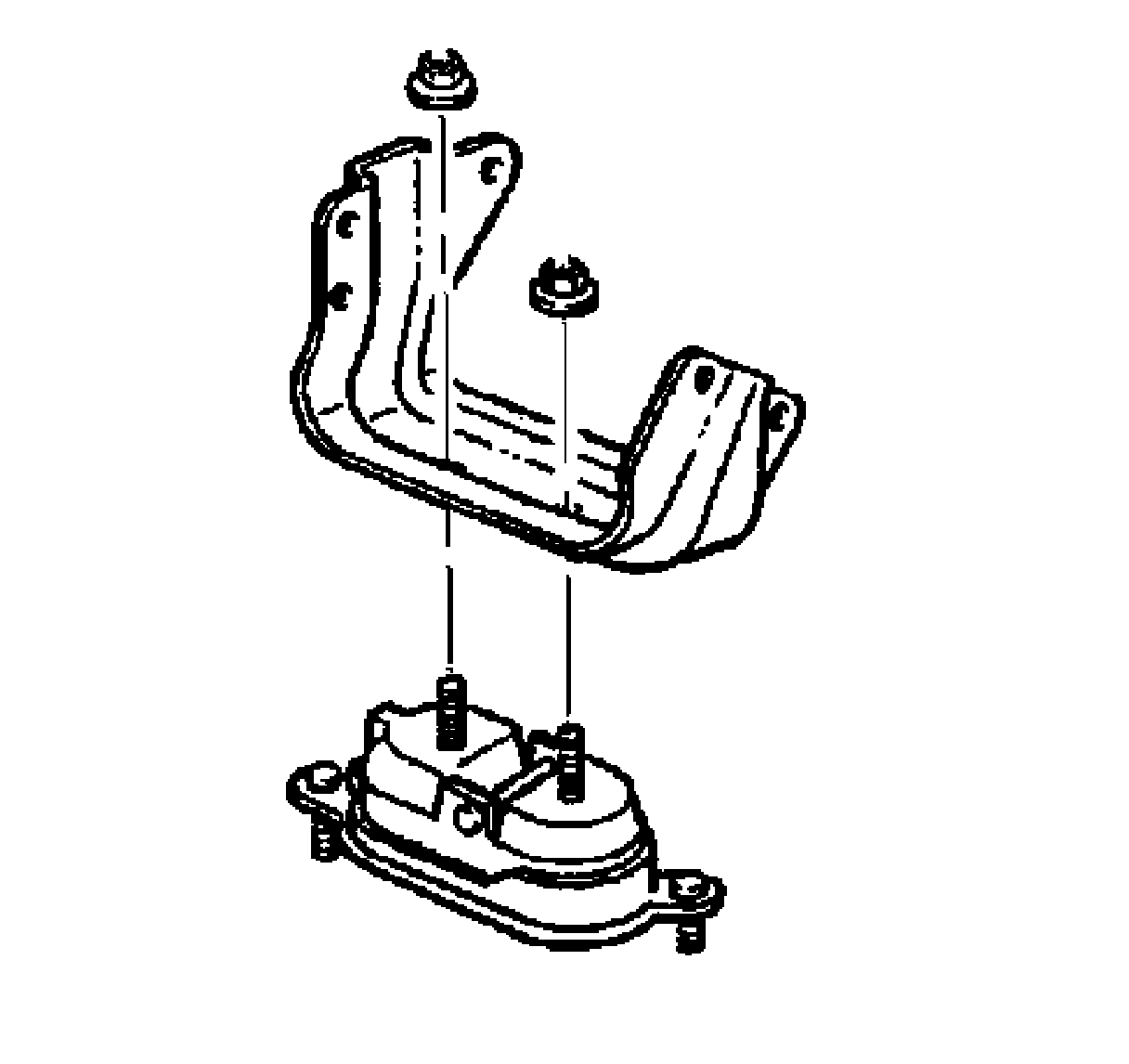

23. Remove the engine mount upper nuts.
24. Remove the engine mount from the engine mount bracket.

Installation Procedure




1. Install the engine mount to the engine mount bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount upper nuts to the engine mount and the engine mount bracket.

Tighten the engine mount upper nuts to 43 N.m (32 lb ft).

3. Install the engine mount bracket with the engine mount to the engine.




4. Loosely install the right engine mount bracket bolts to the engine.




5. Loosely install the left engine mount bracket bolts to the engine.

Tighten the left and the right engine mount bracket bolts to 102 N.m (75 lb ft).

6. Using the jackstands raise the frame to the original position.
7. Install the right side frame bolts.

Tighten the right and the left side frame bolts to 180 N.m (133 lb ft).

8. Lower the vehicle.
9. Use the engine support fixture to lower the engine.
10. Raise the vehicle.




11. Install the engine mount lower nuts to the frame.

Tighten the engine mount lower nuts to 43 N.m (32 lb ft).




12. Install the catalytic converter to the right exhaust manifold.
13. Install the right exhaust manifold pipe stud nuts

Tighten the right exhaust manifold pipe stud nuts to 30 N.m (22 lb ft).




14. Install the A/C compressor bracket and the A/C compressor bracket bolts.

Tighten the A/C compressor bracket bolts to 50 N.m (37 lb ft).

15. Install the A/C compressor and the A/C compressor nuts.

Tighten the A/C compressor nuts to 30 N.m (22 lb ft).

16. Install the power steering oil cooler pipe brackets to the frame.




17. Install the right engine splash shield.
18. Install the right front tire and wheel.
19. Lower the vehicle.
20. Remove the engine support fixture.
21. Install the right and left engine mount struts.
22. Install the air inlet duct to the throttle body.
23. Connect the intake air temperature (IAT) sensor electrical connector.
24. Install the drive belt.
25. Install the fuel injector sight shield.
26. Connect the negative battery cable.
