Home
>>
Pontiac
>>
2007
>>
Grand Prix V6-3.8L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Multiple Junction Connector
>>
C400 - C499
>>
C401
C401

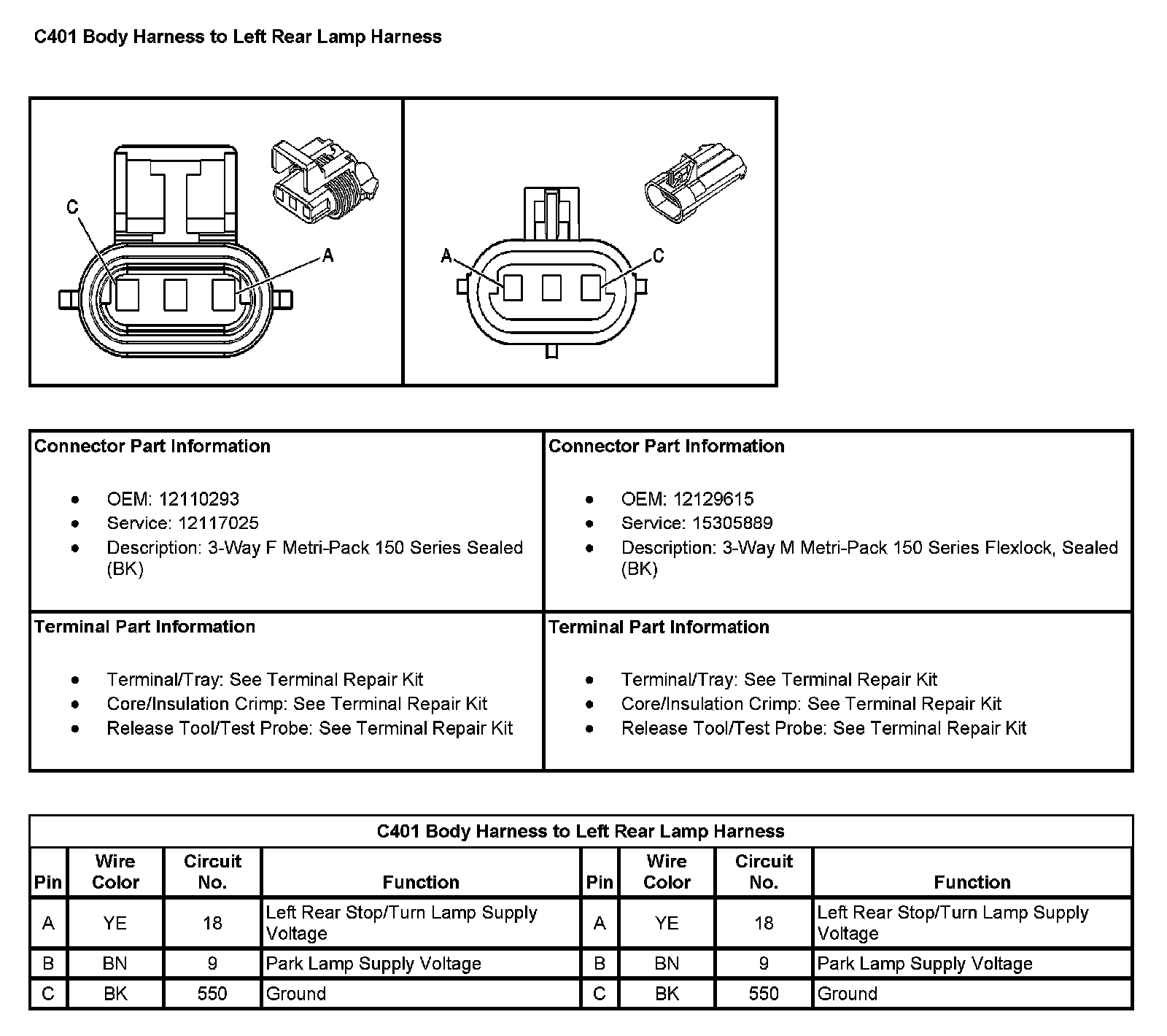

C401 Body Harness To Left Rear Lamp Harness:
