Brake Warning Indicator Always On

Brake Warning Indicator Always On

Test Description

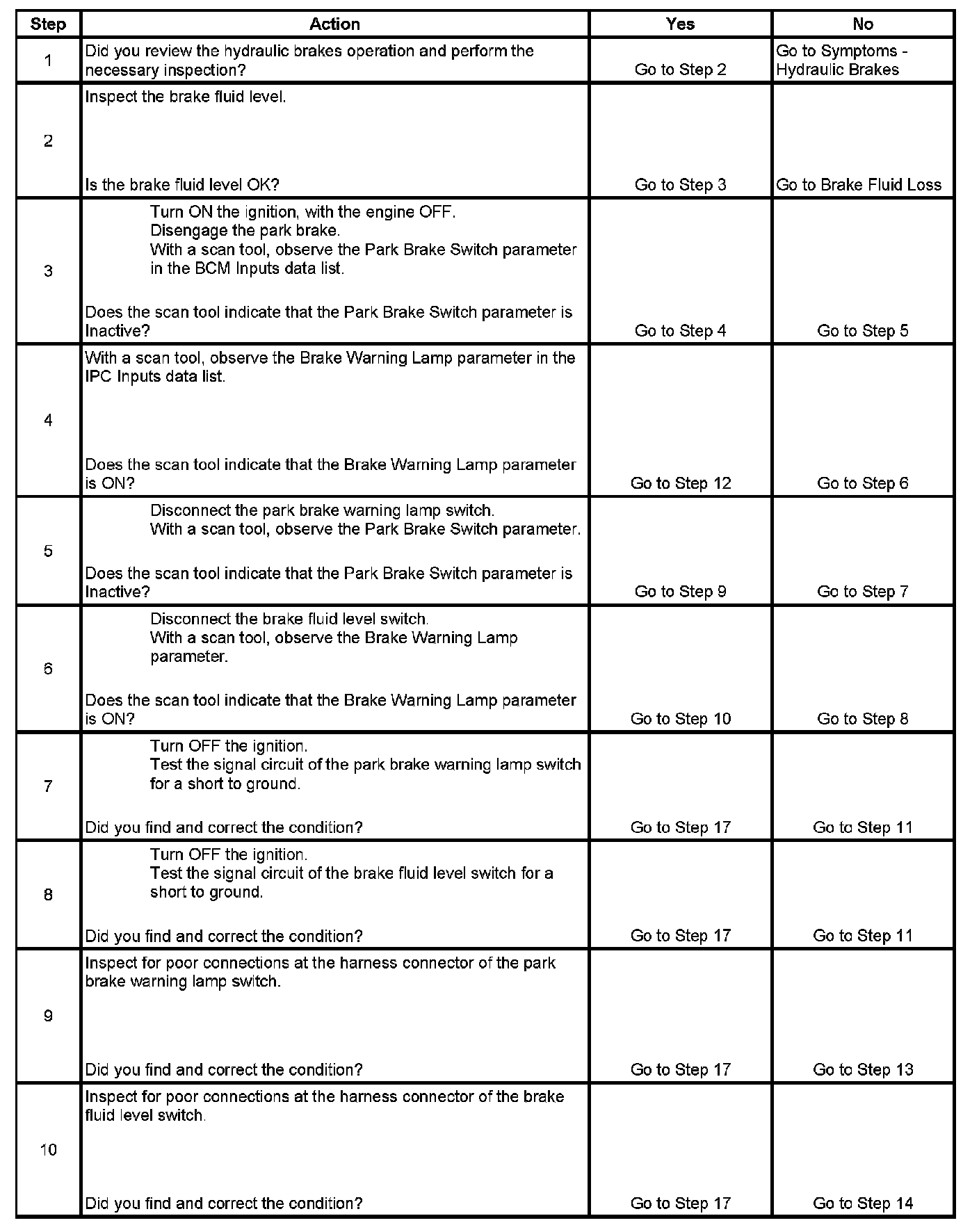

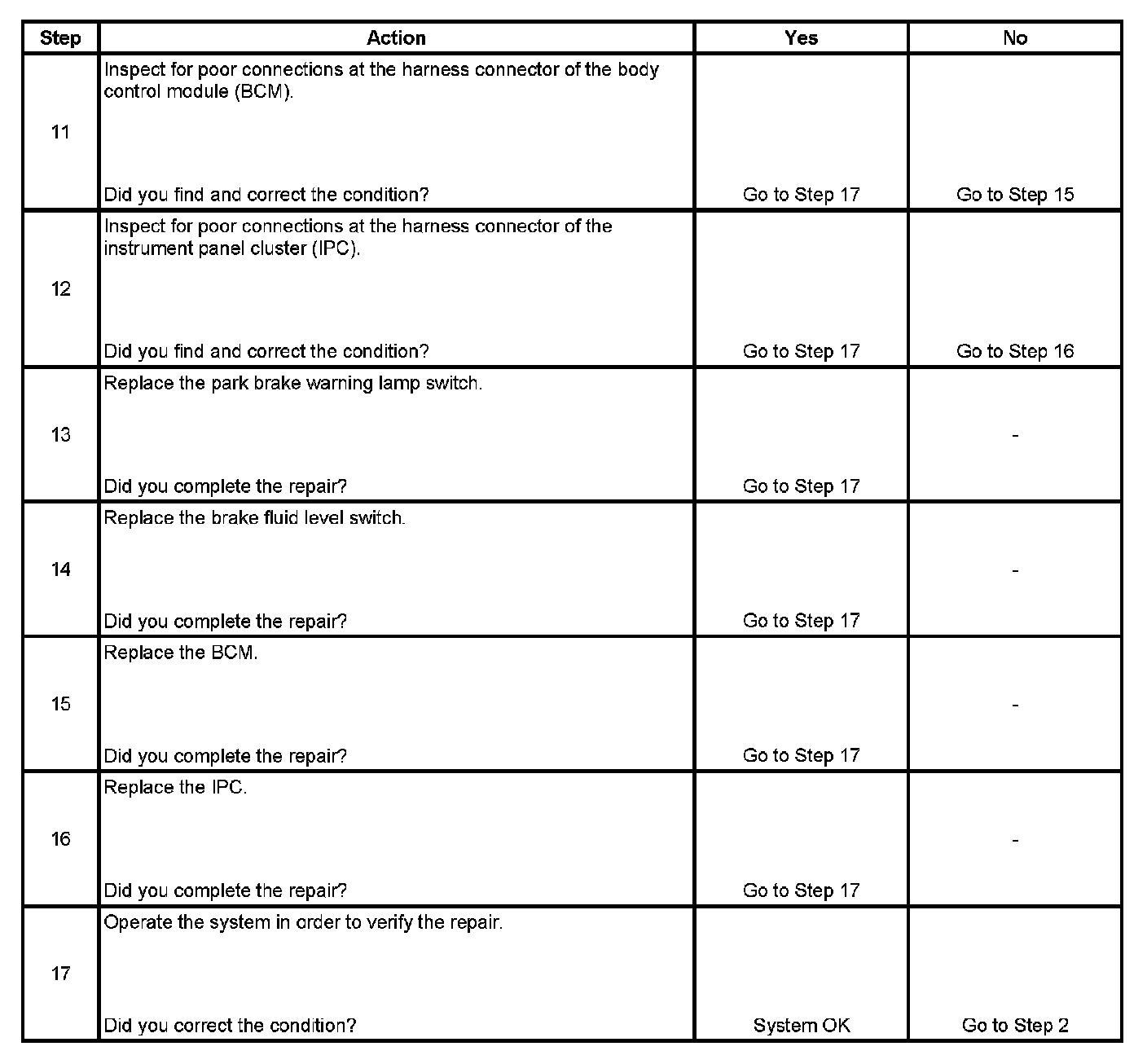

The number below refers to the step number on the diagnostic table.
7. If the fuse in the jumper opens when you perform this test, the signal circuit of the brake fluid level switch is shorted to voltage.
