Hood Insulator / Pad: Service and Repair

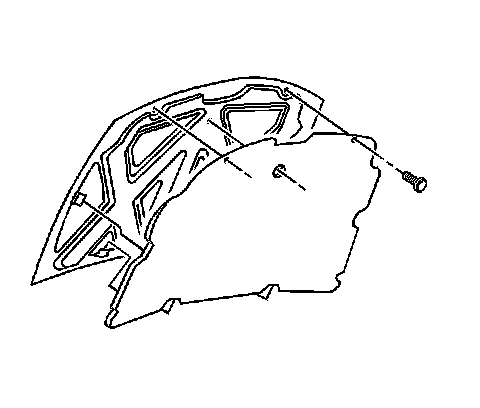

Hood Insulator Replacement

Removal Procedure




1. Open the hood.
2. Remove the hood insulator push-in retainers.
3. Remove the hood insulator from the hood.

Installation Procedure




1. Install the hood insulator to the hood.
2. Align the hood insulator retainers holes to the holes in the hood.
3. Install the hood insulator push-in retainers to the hood insulator.
4. Close the hood.
