Rear Energy Absorber Replacement

Rear Energy Absorber Replacement


Removal Procedure





1.Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .

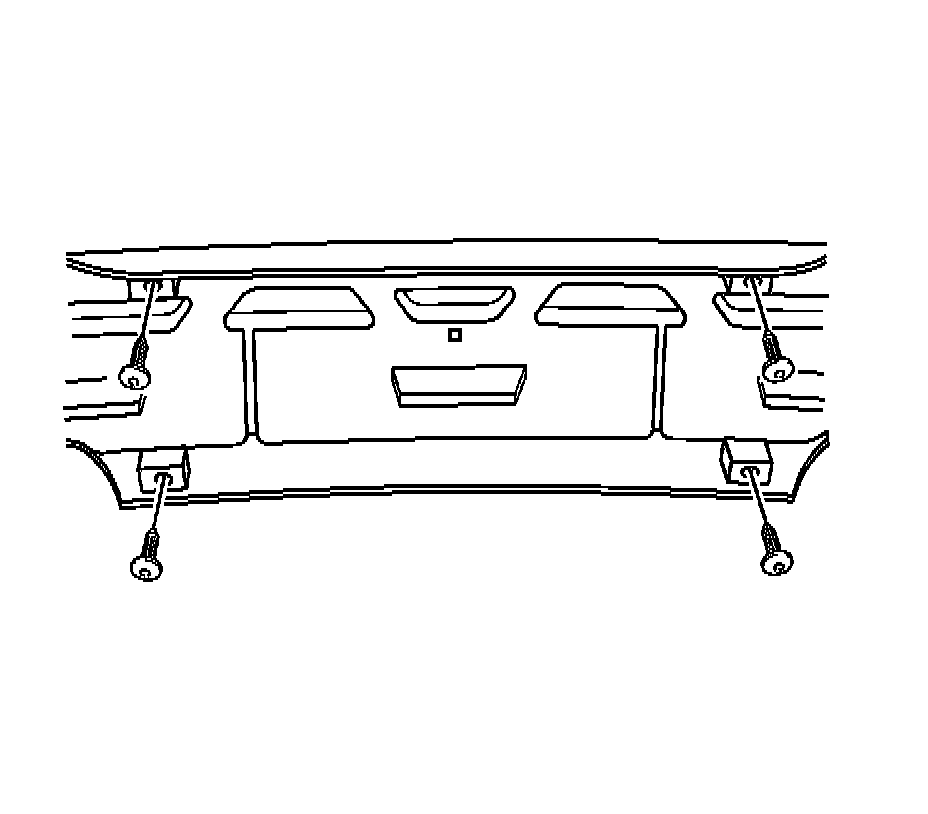

2.Remove the screws from the rear bumper energy absorber.

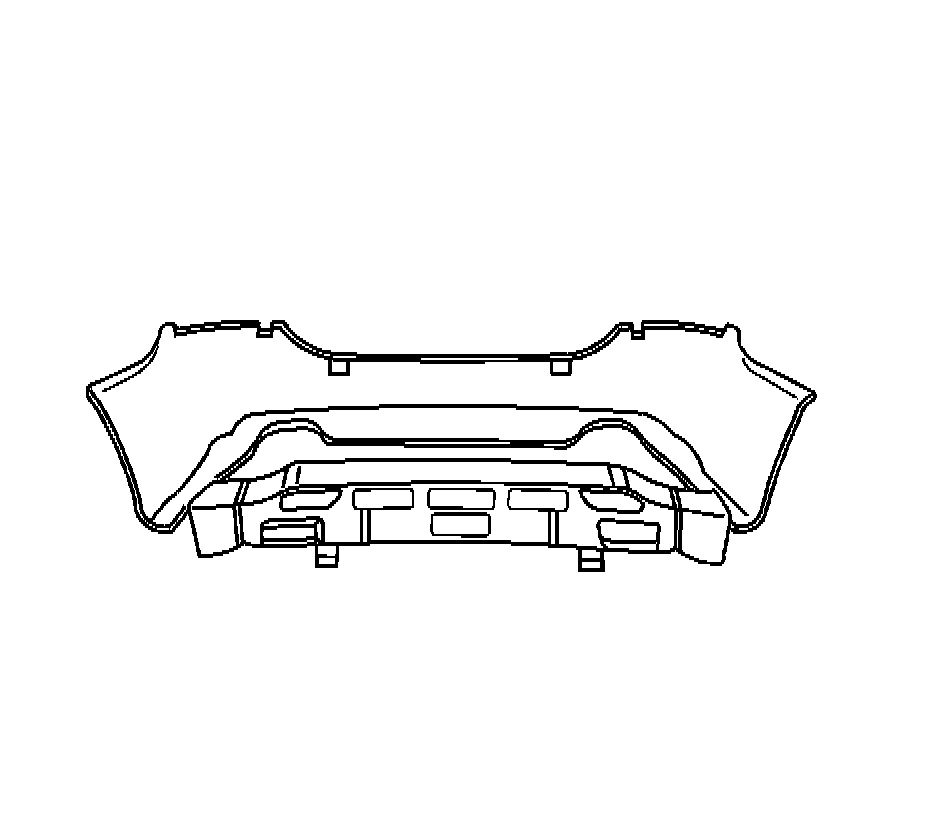

3.Remove the rear bumper energy absorber from the fascia.

Installation Procedure





1.Position the rear bumper energy absorber to the fascia.

Notice:Refer to Fastener Notice .

2.Install the screws to the rear bumper energy absorber.

TightenTighten the screws to 2 N �m (18 lb in).

3.Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .
