Front Bumper Fascia Upper Support Replacement

Front Bumper Fascia Upper Support Replacement


Removal Procedure

1.Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement .

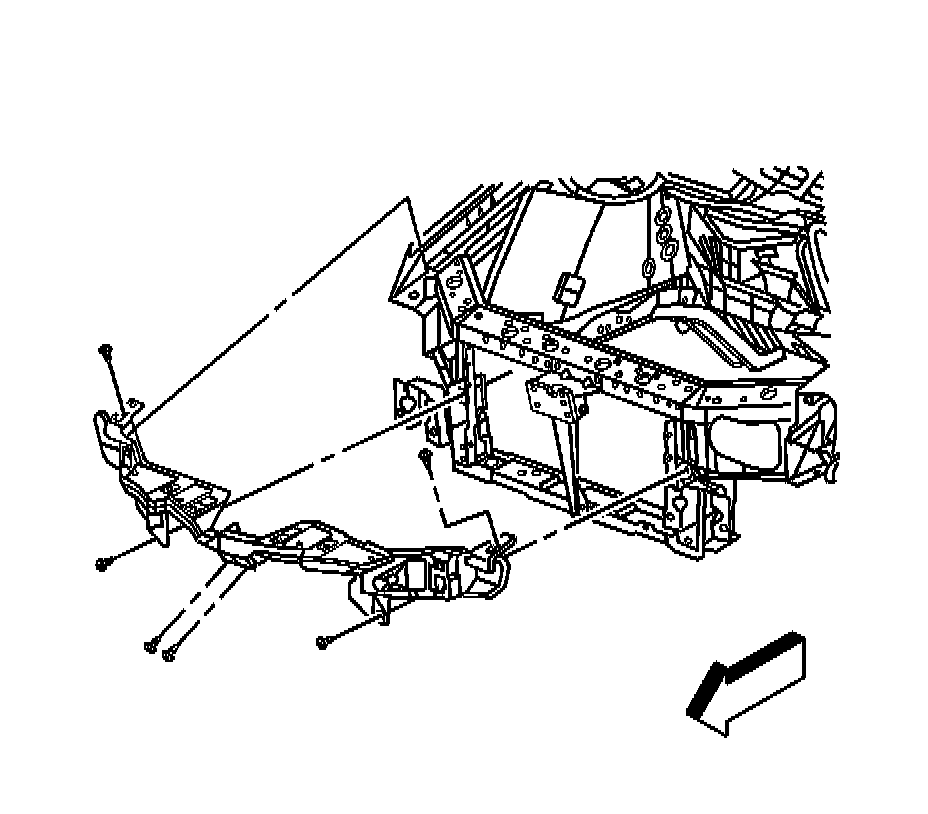

2.Remove the bolts from the front bumper fascia upper support.

3.Remove the screws from the front bumper upper support.

4.Remove the front bumper fascia upper support from the vehicle.

Installation Procedure





1.Position the front bumper fascia upper support to the vehicle.

Notice:Refer to Fastener Notice .

2.Install the front bumper fascia upper support bolts.

TightenTighten the bolts to 7 N �m (61 lb in).

3.Install the front bumper fascia upper support screws.

TightenTighten the screws to 2 N �m (18 lb in).

4.Install the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement .
