Speaker Replacement - Rear

Speaker Replacement - Rear

Removal Procedure




1. Remove the rear window trim panel.

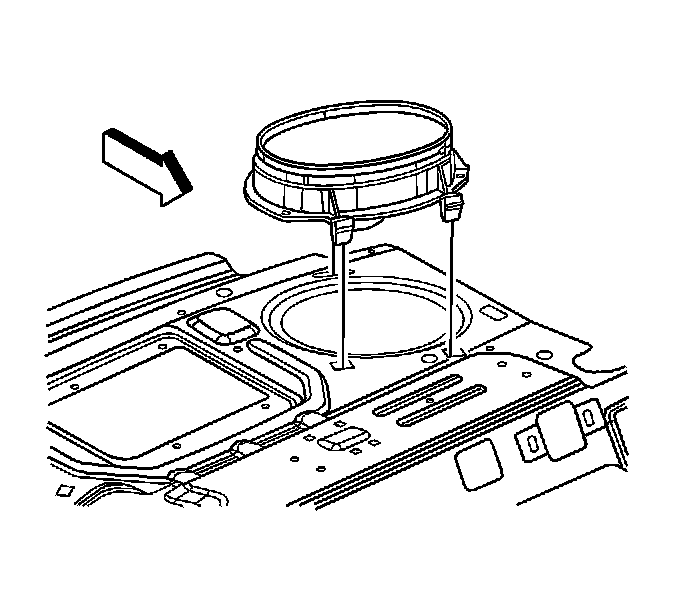

2. Disengage the speaker retainer. Lift the speaker upward slightly. Remove the speaker tabs from the openings in the rear window panel.
3. Disconnect the electrical connector from the rear speaker.
4. Remove the rear speaker.

Installation Procedure




1. Connect the electrical connector to the rear speaker.
2. Insert the speaker tabs to the openings in the rear window panel. Engage the speaker retainer.
3. Install the rear window trim panel.
